QJZ

UCAK208-25, Pillow Block Mounted Unit Bearing, 1.5625 in Bore (ID), Insert Bearing: UC208-25, Housing: AK208

Out of stock
$21.25
Product details
  • Type Mounted Unit Bearings
  • Part Number UCAK208-25
  • Housing AK208
  • Insert Bearing UC208-25
  • Bore (ID) 1.563 in | 39.688 mm
  • Height 3.858 in | 98 mm
  • Length 7.126 in | 181 mm
  • Bolt to Bolt 5.512 in | 140 mm
Description

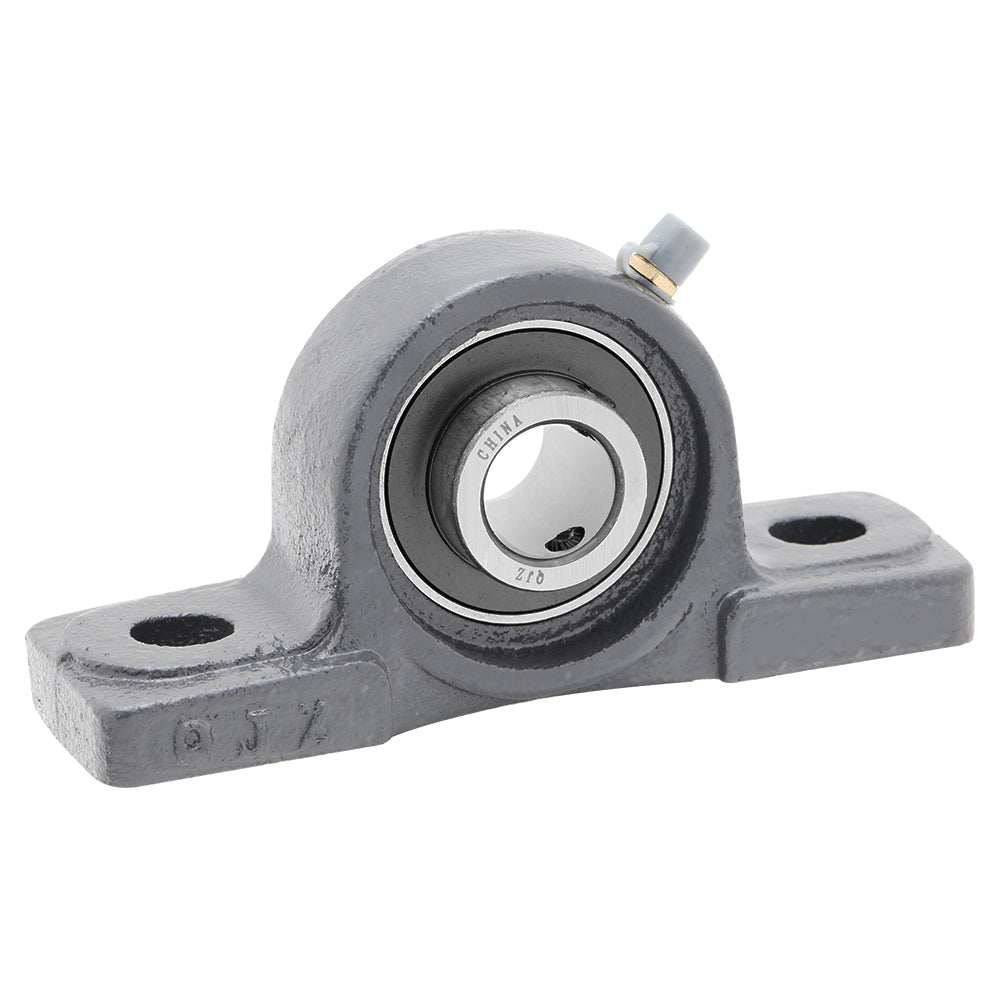

Pillow Block Mounted Unit Bearing

The UC series Pillow Block Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with set-screw locking for secure shaft attachment, easy installation, and long service life.

Model UCAK208-25
Shaft Bore (ID) 1.563 in | 39.688 mm
Length 7.126 in | 181 mm
Height (Thickness) 3.858 in | 98 mm
Width 2.047 in | 52 mm
Bolt to Bolt Spacing 5.512 in | 140 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
