QJZ

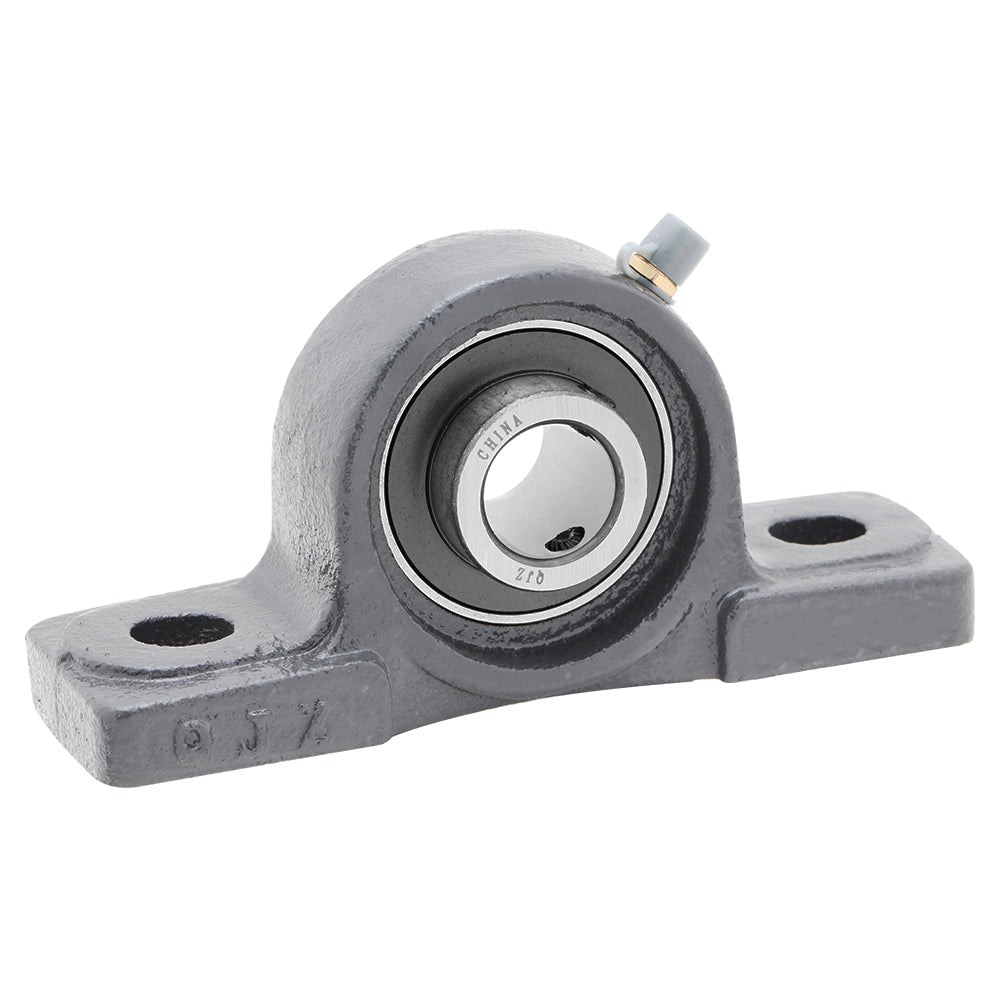

UCAK207-23, Pillow Block Mounted Unit Bearing, 1.4375 in Bore (ID), Insert Bearing: UC207-23, Housing: AK207

Out of stock
$16.50
Product details
  • Type Mounted Unit Bearings
  • Part Number UCAK207-23
  • Housing AK207
  • Insert Bearing UC207-23
  • Bore (ID) 1.438 in | 36.513 mm
  • Height 3.583 in | 91 mm
  • Length 6.575 in | 167 mm
  • Bolt to Bolt 5 in | 127 mm
Description

Pillow Block Mounted Unit Bearing

The UC series Pillow Block Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with set-screw locking for secure shaft attachment, easy installation, and long service life.

Model UCAK207-23
Shaft Bore (ID) 1.438 in | 36.513 mm
Length 6.575 in | 167 mm
Height (Thickness) 3.583 in | 91 mm
Width 1.89 in | 48 mm
Bolt to Bolt Spacing 5 in | 127 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
