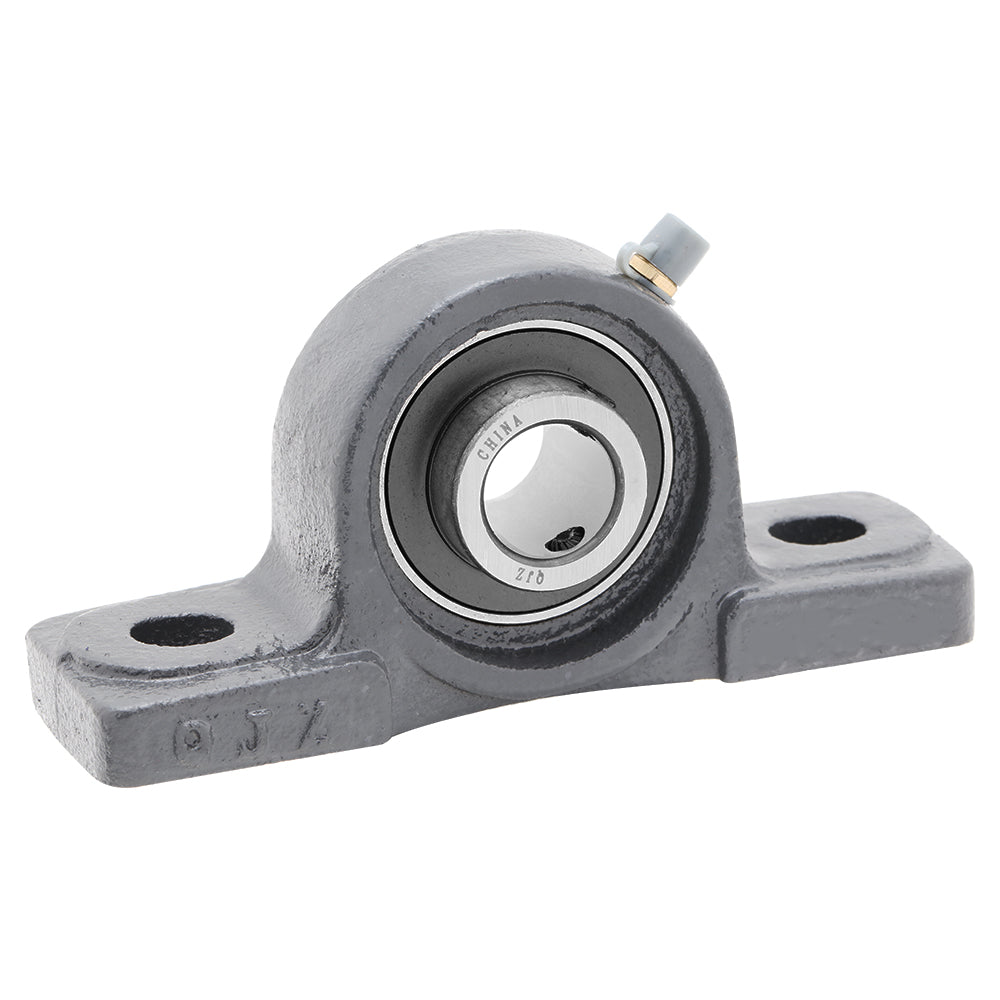

UCAK207-22, Pillow Block Mounted Unit Bearing, 1.375 in Bore (ID), Insert Bearing: UC207-22, Housing: AK207

In stock
$17.25
Product details
  • Type Mounted Unit Bearings
  • Part Number UCAK207-22
  • Housing AK207
  • Insert Bearing UC207-22
  • Bore (ID) 1.375 in | 34.925 mm
  • Height 3.583 in | 91 mm
  • Length 6.575 in | 167 mm
  • Bolt to Bolt 5 in | 127 mm
Description

Pillow Block Mounted Unit Bearing

The UC series Pillow Block Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with set-screw locking for secure shaft attachment, easy installation, and long service life.

Model UCAK207-22
Shaft Bore (ID) 1.375 in | 34.925 mm
Length 6.575 in | 167 mm
Height (Thickness) 3.583 in | 91 mm
Width 1.89 in | 48 mm
Bolt to Bolt Spacing 5 in | 127 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
