UCAK206-19, Pillow Block Mounted Unit Bearing, 1.1875 in Bore (ID), Insert Bearing: UC206-19, Housing: AK206

In stock
$15.99
Product details
  • Type Mounted Unit Bearings
  • Part Number UCAK206-19
  • Housing AK206
  • Insert Bearing UC206-19
  • Bore (ID) 1.188 in | 30.163 mm
  • Height 3.11 in | 79 mm
  • Length 6.299 in | 160 mm
  • Bolt to Bolt 4.764 in | 121 mm
Description

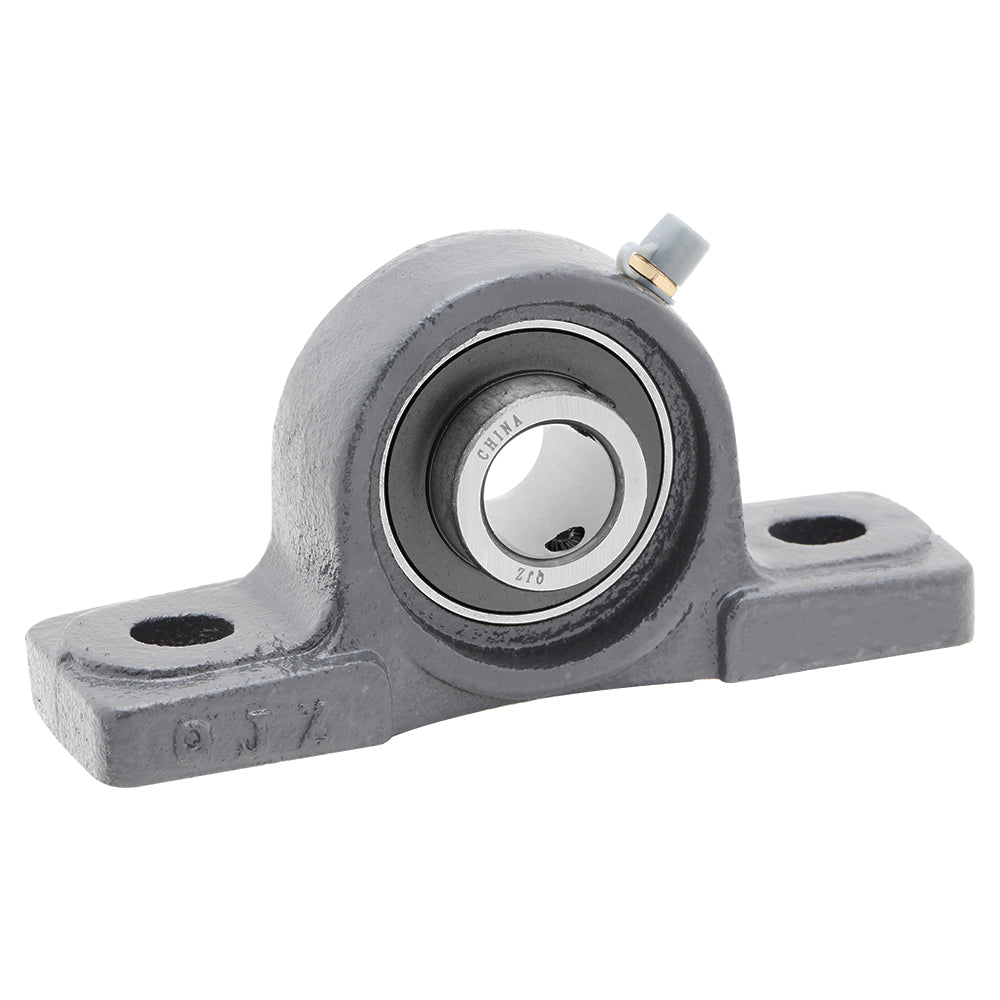

Pillow Block Mounted Unit Bearing

The UC series Pillow Block Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with set-screw locking for secure shaft attachment, easy installation, and long service life.

Model UCAK206-19
Shaft Bore (ID) 1.188 in | 30.163 mm
Length 6.299 in | 160 mm
Height (Thickness) 3.11 in | 79 mm
Width 1.732 in | 44 mm
Bolt to Bolt Spacing 4.764 in | 121 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
