QJZ

UCAK204-12, Pillow Block Mounted Unit Bearing, 0.75 in Bore (ID), Insert Bearing: UC204-12, Housing: AK204

In stock
$8.25
Product details
  • Type Mounted Unit Bearings
  • Part Number UCAK204-12
  • Housing AK204
  • Insert Bearing UC204-12
  • Bore (ID) 0.75 in | 19.05 mm
  • Height 2.48 in | 63 mm
  • Length 5.039 in | 128 mm
  • Bolt to Bolt 3.858 in | 98 mm
Description

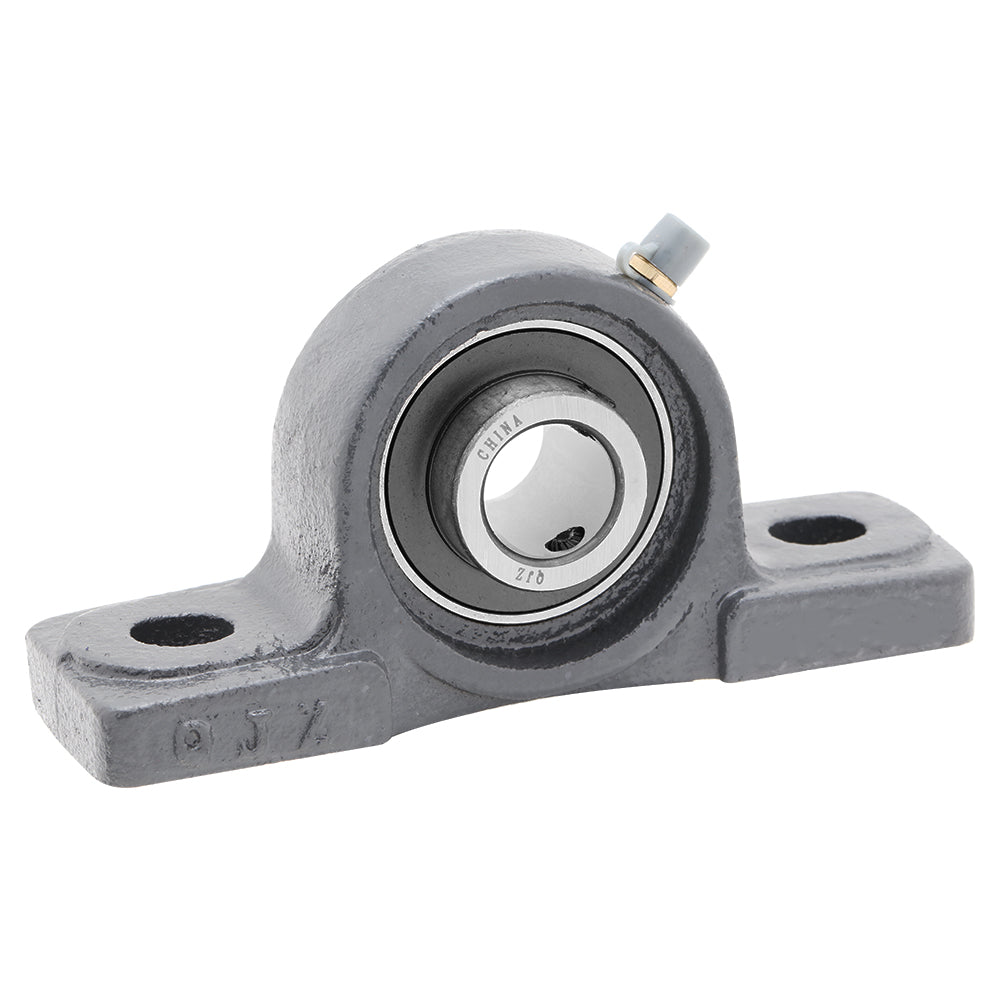

Pillow Block Mounted Unit Bearing

The UC series Pillow Block Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with set-screw locking for secure shaft attachment, easy installation, and long service life.

Model UCAK204-12
Shaft Bore (ID) 0.75 in | 19.05 mm
Length 5.039 in | 128 mm
Height (Thickness) 2.48 in | 63 mm
Width 1.496 in | 38 mm
Bolt to Bolt Spacing 3.858 in | 98 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
