QJZ

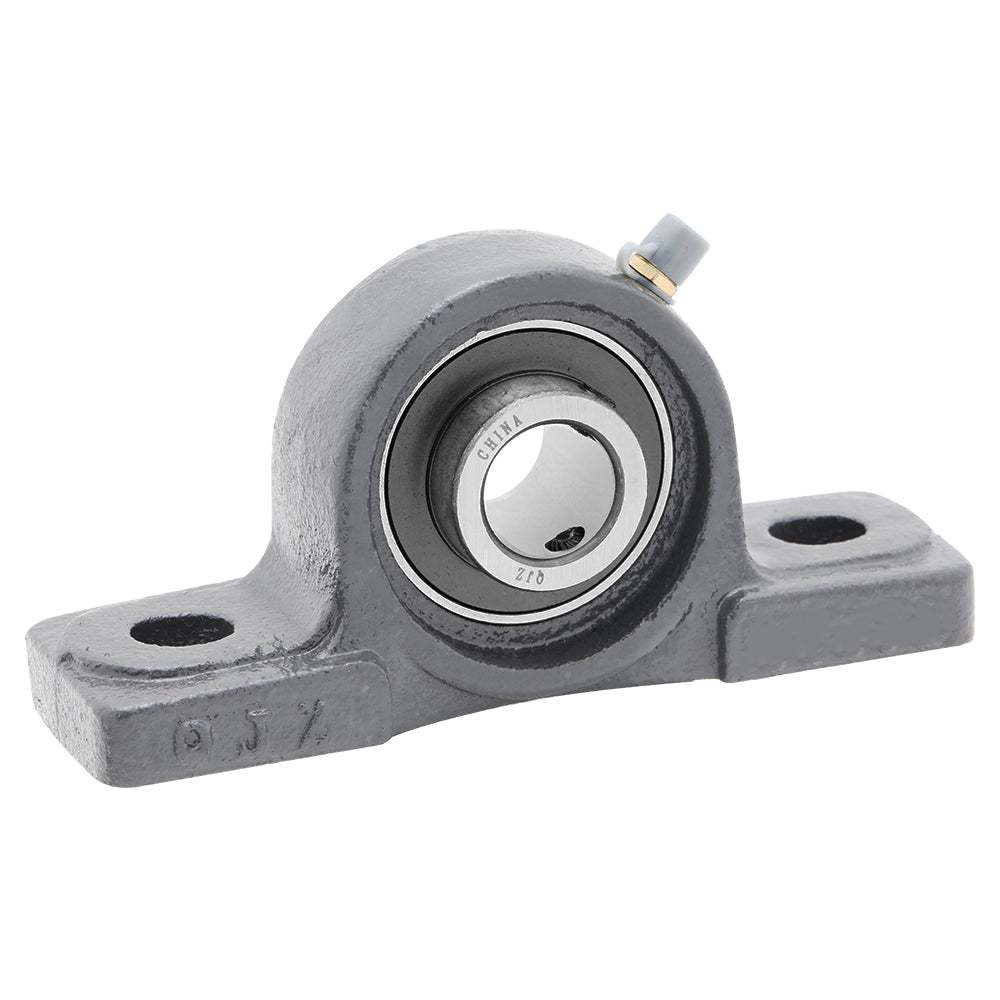

UCAK203-11, Pillow Block Mounted Unit Bearing, 0.6875 in Bore (ID), Insert Bearing: UC203-11, Housing: AK204

Out of stock
$10.50
Product details
  • Type Mounted Unit Bearings
  • Part Number UCAK203-11
  • Housing AK204
  • Insert Bearing UC203-11
  • Bore (ID) 0.688 in | 17.463 mm
  • Height 2.48 in | 63 mm
  • Length 5.039 in | 128 mm
  • Bolt to Bolt 3.858 in | 98 mm
Description

Pillow Block Mounted Unit Bearing

The UC series Pillow Block Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with set-screw locking for secure shaft attachment, easy installation, and long service life.

Model UCAK203-11
Shaft Bore (ID) 0.688 in | 17.463 mm
Length 5.039 in | 128 mm
Height (Thickness) 2.48 in | 63 mm
Width 1.496 in | 38 mm
Bolt to Bolt Spacing 3.858 in | 98 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
