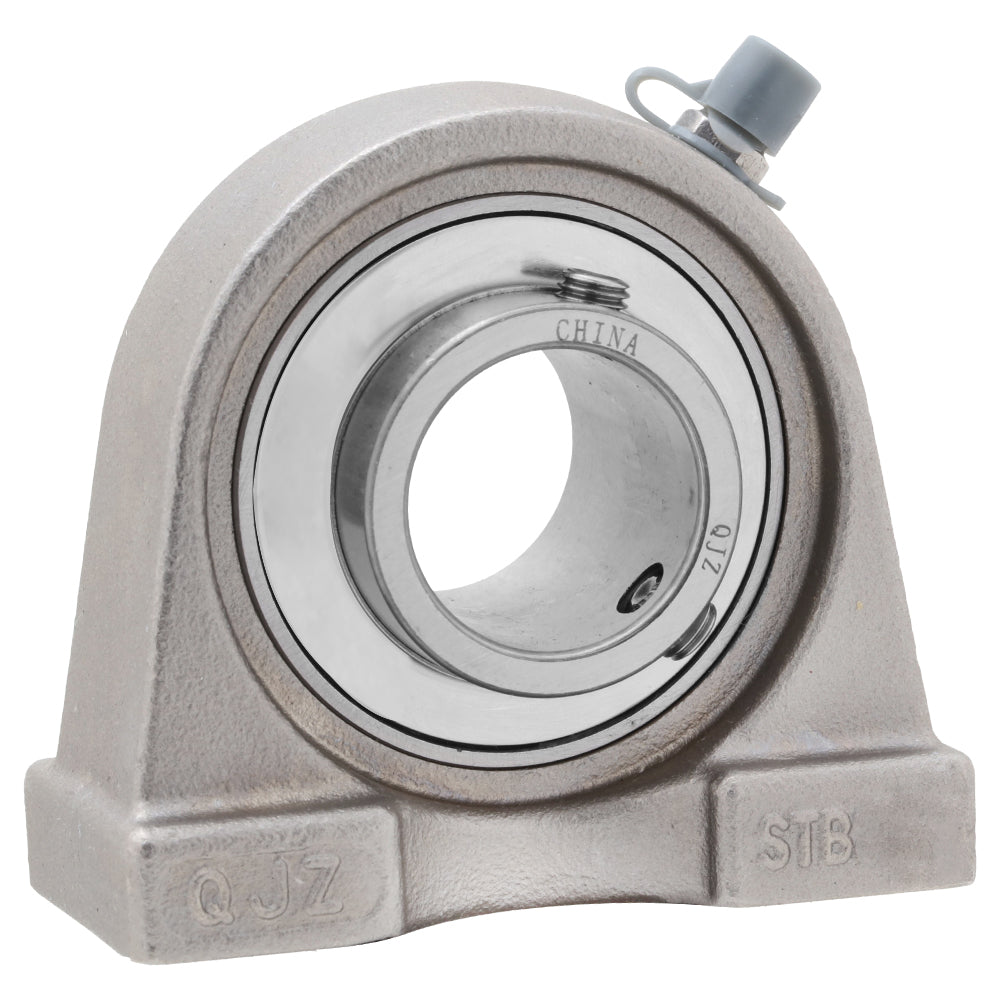

SUCSTB207-20, Stainless Steel Tapped Based Pillow Block Mounted Unit Bearing, 1 1/4 in Bore (ID), Insert Bearing: UC207-20, Housing: TB207

In stock
$94.25
Product details
  • Type Mounted Unit Bearings
  • Part Number SSUCTB207-20
  • Housing SSTB207
  • Insert Bearing SSUC207-20
  • Bore (ID) 1.25 in | 31.75 mm
  • Height 3.752 in | 95.3 mm
  • Length 4.248 in | 107.899 mm
  • Bolt to Bolt 3.248 in | 82.5 mm
Description

Stainless Steel Tapped Based Pillow Block Mounted Unit Ball Bearing

The UC Series Stainless Steel Tapped Based Pillow Block mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (UC207-20) and housing (TB207) with locking set screw, designed for easy installation and long-lasting performance.

Model SUCSTB207-20
Shaft Bore (ID) 1.25 in | 31.75 mm
Length 4.248 in | 107.9 mm
Width 1.874 in | 47.6 mm
Height (Thickness) 3.752 in | 95.3 mm
Bolt to Bolt Spacing 3.248 in | 82.5 mm

Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
