QJZ

SUCSTB205-14, Stainless Steel Tapped Based Pillow Block Mounted Unit Bearing, 7/8 in Bore (ID), Insert Bearing: UC205-14, Housing: TB205

Out of stock
$39.25
Product details
  • Type Mounted Unit Bearings
  • Part Number SSUCTB205-14
  • Housing SSTB205
  • Insert Bearing SSUC205-14
  • Bore (ID) 0.875 in | 22.225 mm
  • Height 2.811 in | 71.4 mm
  • Length 3 in | 76.2 mm
  • Bolt to Bolt 2 in | 50.8 mm
Description

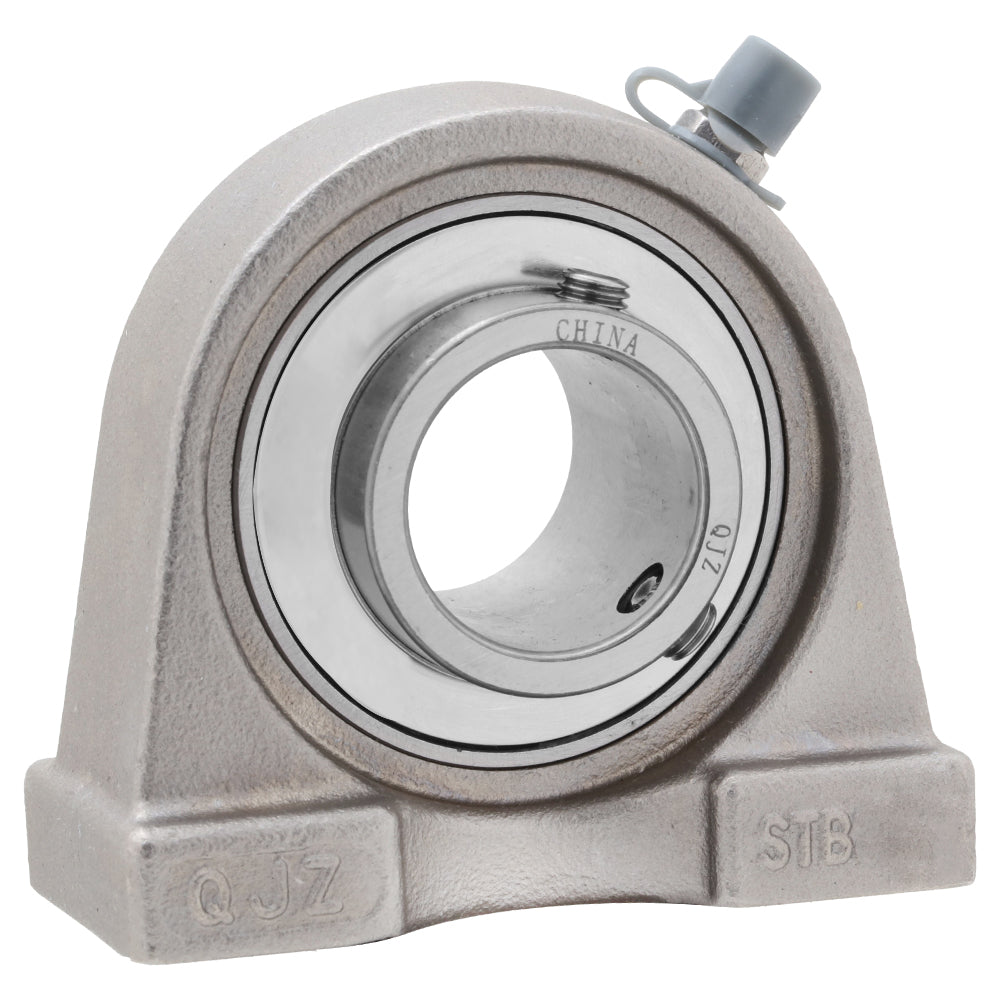

Stainless Steel Tapped Based Pillow Block Mounted Unit Ball Bearing

The UC Series Stainless Steel Tapped Based Pillow Block mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (UC205-14) and housing (TB205) with locking set screw, designed for easy installation and long-lasting performance.

Model SUCSTB205-14
Shaft Bore (ID) 0.875 in | 22.225 mm
Length 3 in | 76.2 mm
Width 1.5 in | 38.1 mm
Height (Thickness) 2.811 in | 71.4 mm
Bolt to Bolt Spacing 2 in | 50.8 mm

Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
