QJZ

SUCSTB204-12, Stainless Steel Tapped Based Pillow Block Mounted Unit Bearing, 3/4 in Bore (ID), Insert Bearing: UC204-12, Housing: TB204

In stock
$29.25
Product details
  • Type Mounted Unit Bearings
  • Part Number SSUCTB204-12
  • Housing SSTB204
  • Insert Bearing SSUC204-12
  • Bore (ID) 0.75 in | 19.05 mm
  • Height 2.563 in | 65.1 mm
  • Length 2.874 in | 73 mm
  • Bolt to Bolt 2 in | 50.8 mm
Description

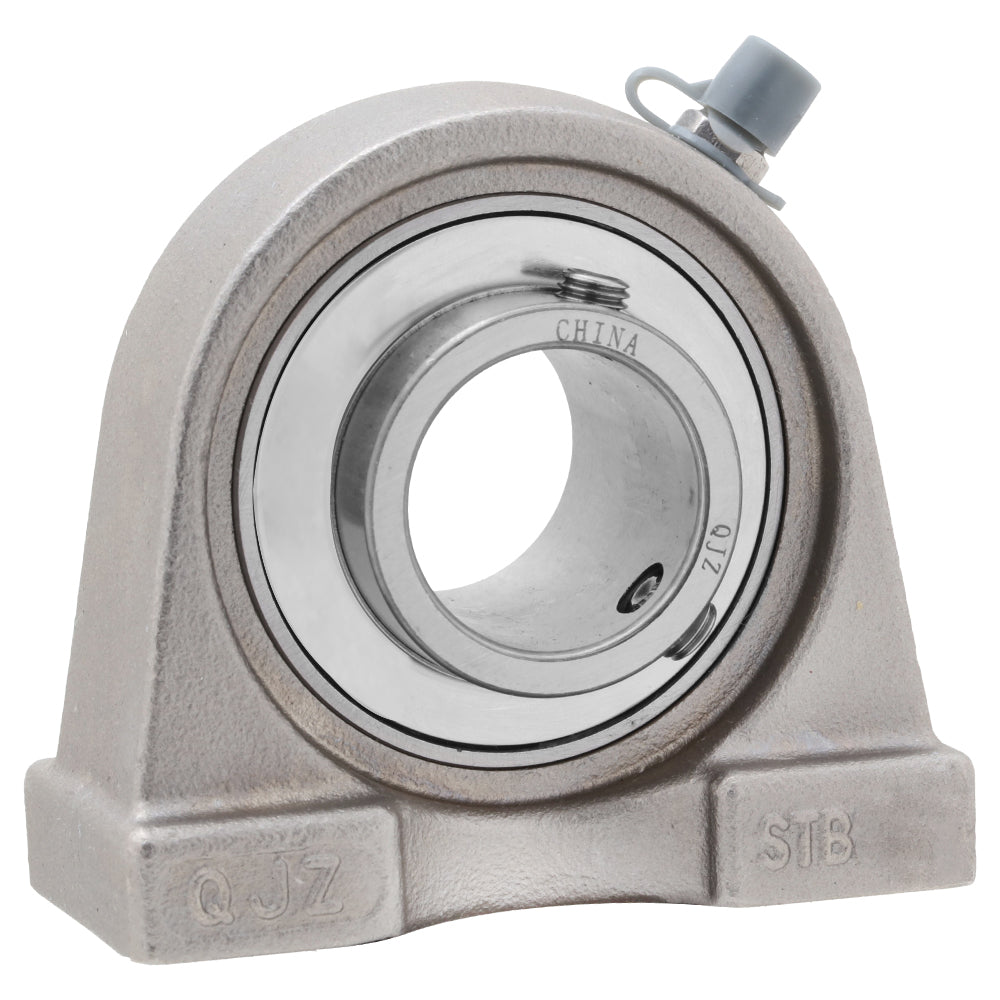

Stainless Steel Tapped Based Pillow Block Mounted Unit Ball Bearing

The UC Series Stainless Steel Tapped Based Pillow Block mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (UC204-12) and housing (TB204) with locking set screw, designed for easy installation and long-lasting performance.

Model SUCSTB204-12
Shaft Bore (ID) 0.75 in | 19.05 mm
Length 2.874 in | 73 mm
Width 1.5 in | 38.1 mm
Height (Thickness) 2.563 in | 65.1 mm
Bolt to Bolt Spacing 2 in | 50.8 mm

Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
