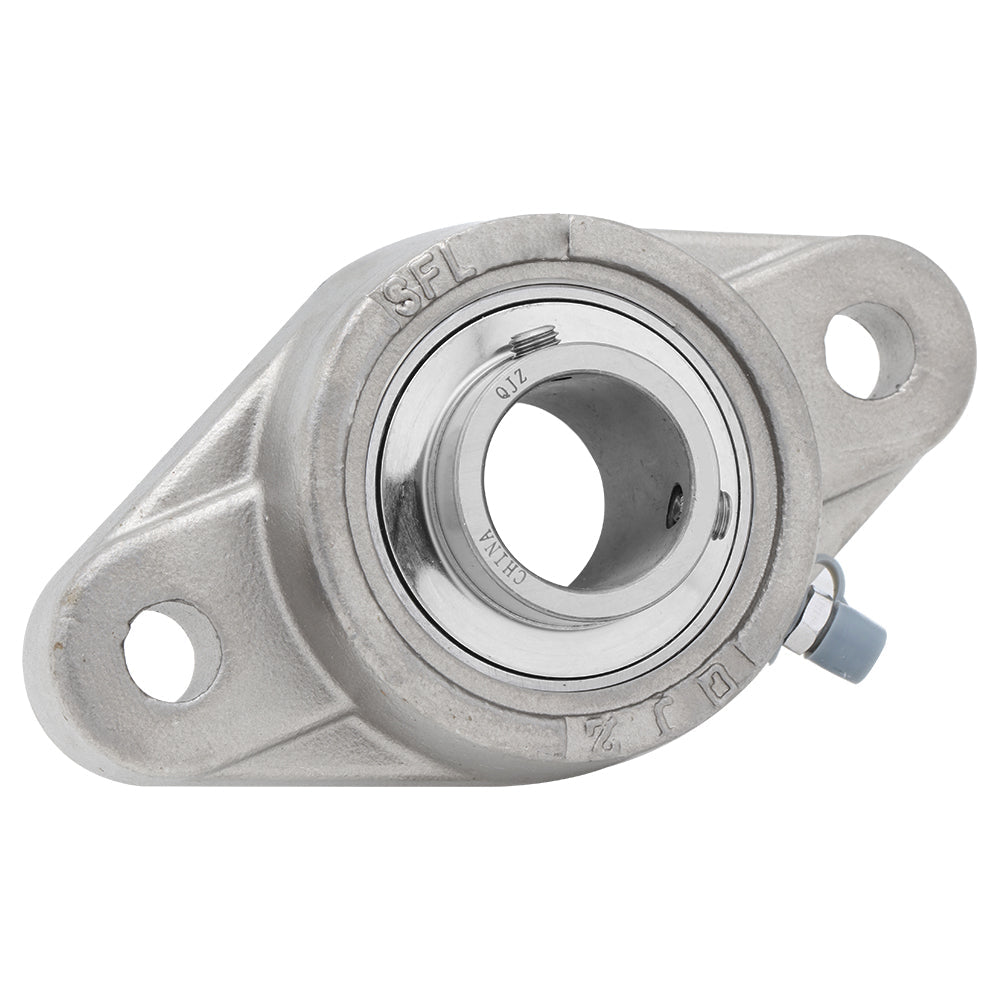

SUCSFL212-39, Stainless Steel 2-Bolt Flange Mounted Ball Bearing, Insert Bearing: UC212-39, Housing: FL212

Out of stock
SKU: SSUCFL212-39
Material and bore size can be selected below. Dimensions (Bolt to Bolt x Length × Width × Height) remain the same for all options.
$195.50
Product details
  • Part Number SSUCFL212-39
  • Housing SSFL212
  • Insert Bearing SSUC212-39
  • Bore (ID) 2.438 in | 61.913 mm
  • Bolt to Bolt 7.953 in | 202 mm
  • Length 9.843 in | 250 mm
  • Width 5.512 in | 140 mm
  • Height 2.705 in | 68.707 mm
Description

Stainless Steel 2-Bolt Flange Mounted Unit Bearing

The Stainess Steel UC series with (FL) 2-bolt flange mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (SUCS209-28) and a housing (SSFL209) with set-screw locking for secure shaft attachment, easy installation, and long service life. Made of stainless steel, these bearings are resistant to rust, corrosion, and moisture, ensuring long-lasting performance even in harsh environments.

Model SUCSFL212-39
Shaft Bore (ID) 2.438 in | 61.913 mm
Flange Length 9.843 in | 250.012 mm
Flange Width 5.512 in | 140.005 mm
Height 2.705 in | 68.707 mm
Bolt to Bolt Spacing 7.953 in | 202 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
