SUCSFL211, Stainless Steel 2-Bolt Flange Mounted Ball Bearing, Insert Bearing: UC211, Housing: FL211

Out of stock
SKU: SSUCFL211
Material and bore size can be selected below. Dimensions (Bolt to Bolt x Length × Width × Height) remain the same for all options.
$124.25
Product details
  • Part Number SSUCFL211
  • Housing SSFL211
  • Insert Bearing SSUC211
  • Bore (ID) 2.165 in | 55 mm
  • Bolt to Bolt 7.244 in | 184 mm
  • Length 8.819 in | 224 mm
  • Width 5.118 in | 130 mm
  • Height 2.299 in | 58.395 mm
Description

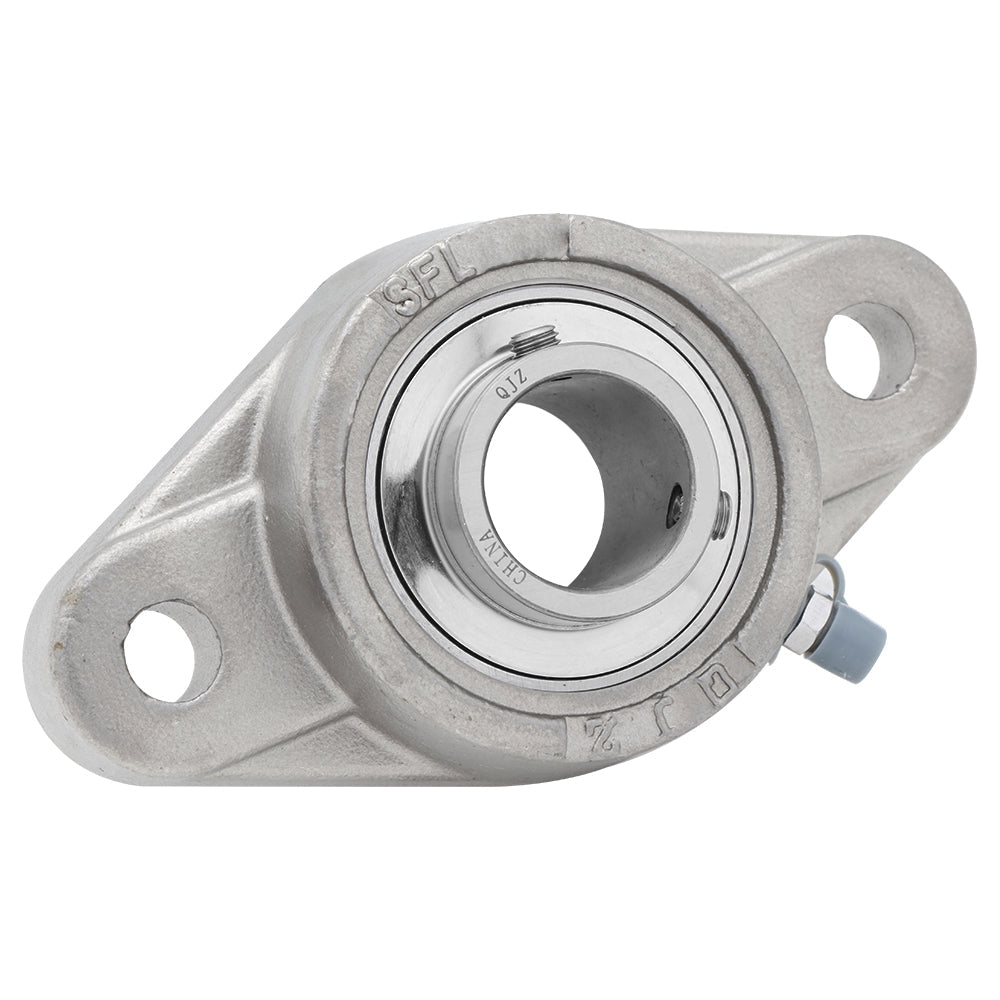

Stainless Steel 2-Bolt Flange Mounted Unit Bearing

The Stainess Steel UC series with (FL) 2-bolt flange mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (SUCS209-28) and a housing (SSFL209) with set-screw locking for secure shaft attachment, easy installation, and long service life. Made of stainless steel, these bearings are resistant to rust, corrosion, and moisture, ensuring long-lasting performance even in harsh environments.

Model SUCSFL211
Shaft Bore (ID) 2.165 in | 55 mm
Flange Length 8.819 in | 224 mm
Flange Width 5.118 in | 130 mm
Height 2.299 in | 58.395 mm
Bolt to Bolt Spacing 7.244 in | 184 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
