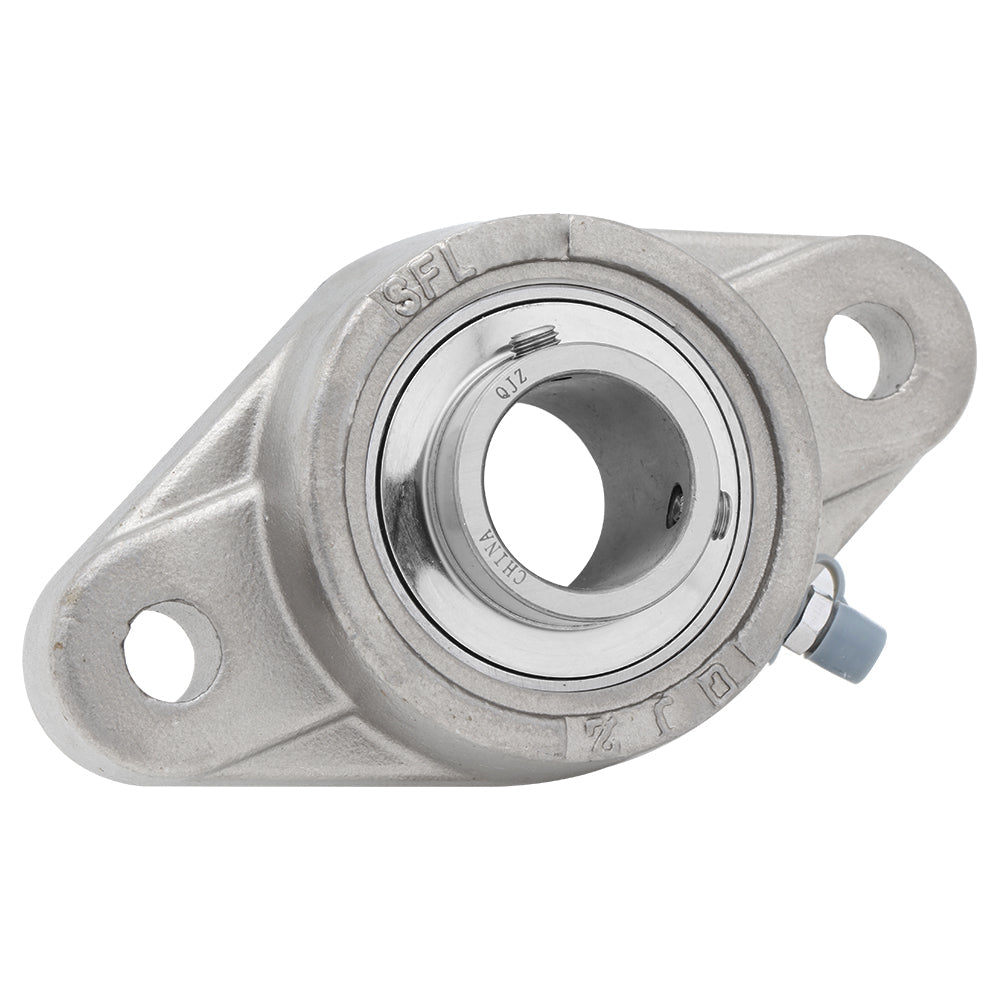

SUCSFL210, Stainless Steel 2-Bolt Flange Mounted Ball Bearing, Insert Bearing: UC210, Housing: FL210

Out of stock
SKU: SSUCFL210
Material and bore size can be selected below. Dimensions (Bolt to Bolt x Length × Width × Height) remain the same for all options.
$127.50
Product details
  • Part Number SSUCFL210
  • Housing SSFL210
  • Insert Bearing SSUC210
  • Bore (ID) 1.969 in | 50 mm
  • Bolt to Bolt 6.181 in | 157 mm
  • Length 7.756 in | 197 mm
  • Width 4.528 in | 115.011 mm
  • Height 2.15 in | 54.61 mm
Description

Stainless Steel 2-Bolt Flange Mounted Unit Bearing

The Stainess Steel UC series with (FL) 2-bolt flange mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (SUCS209-28) and a housing (SSFL209) with set-screw locking for secure shaft attachment, easy installation, and long service life. Made of stainless steel, these bearings are resistant to rust, corrosion, and moisture, ensuring long-lasting performance even in harsh environments.

Model SUCSFL210
Shaft Bore (ID) 1.969 in | 50 mm
Flange Length 7.756 in | 197.002 mm
Flange Width 4.528 in | 115.011 mm
Height 2.15 in | 54.61 mm
Bolt to Bolt Spacing 6.181 in | 157 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
