SUCSFL209-27, Stainless Steel 2-Bolt Flange Mounted Ball Bearing, Insert Bearing: UC209-27, Housing: FL209

Out of stock
SKU: SSUCFL209-27
Material and bore size can be selected below. Dimensions (Bolt to Bolt x Length × Width × Height) remain the same for all options.
$106.75
Product details
  • Part Number SSUCFL209-27
  • Housing SSFL209
  • Insert Bearing SSUC209-27
  • Bore (ID) 1.688 in | 42.863 mm
  • Bolt to Bolt 5.827 in | 148 mm
  • Length 7.402 in | 188.011 mm
  • Width 4.252 in | 108 mm
  • Height 2.055 in | 52.197 mm
Description

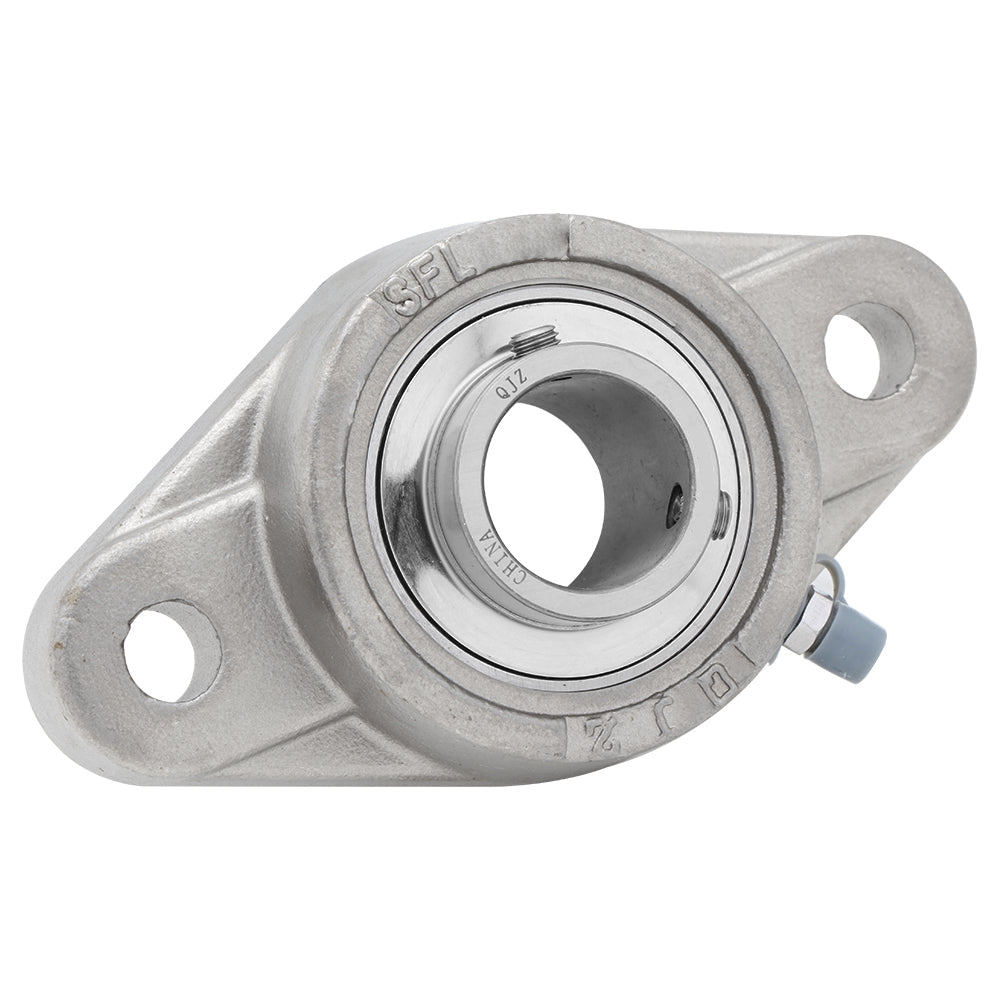

Stainless Steel 2-Bolt Flange Mounted Unit Bearing

The Stainess Steel UC series with (FL) 2-bolt flange mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (SUCS209-28) and a housing (SSFL209) with set-screw locking for secure shaft attachment, easy installation, and long service life. Made of stainless steel, these bearings are resistant to rust, corrosion, and moisture, ensuring long-lasting performance even in harsh environments.

Model SUCSFL209-27
Shaft Bore (ID) 1.688 in | 42.863 mm
Flange Length 7.402 in | 188.011 mm
Flange Width 4.252 in | 108.001 mm
Height 2.055 in | 52.197 mm
Bolt to Bolt Spacing 5.827 in | 148 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
