SUCSFL208-24, Stainless Steel 2-Bolt Flange Mounted Ball Bearing, Insert Bearing: UC208-24, Housing: FL208

In stock
SKU: SSUCFL208-24
Material and bore size can be selected below. Dimensions (Bolt to Bolt x Length × Width × Height) remain the same for all options.
$101.50
Product details
  • Part Number SSUCFL208-24
  • Housing SSFL208
  • Insert Bearing SSUC208-24
  • Bore (ID) 1.5 in | 38.1 mm
  • Bolt to Bolt 5.669 in | 144 mm
  • Length 6.89 in | 175.006 mm
  • Width 3.937 in | 100 mm
  • Height 2.016 in | 51.206 mm
Description

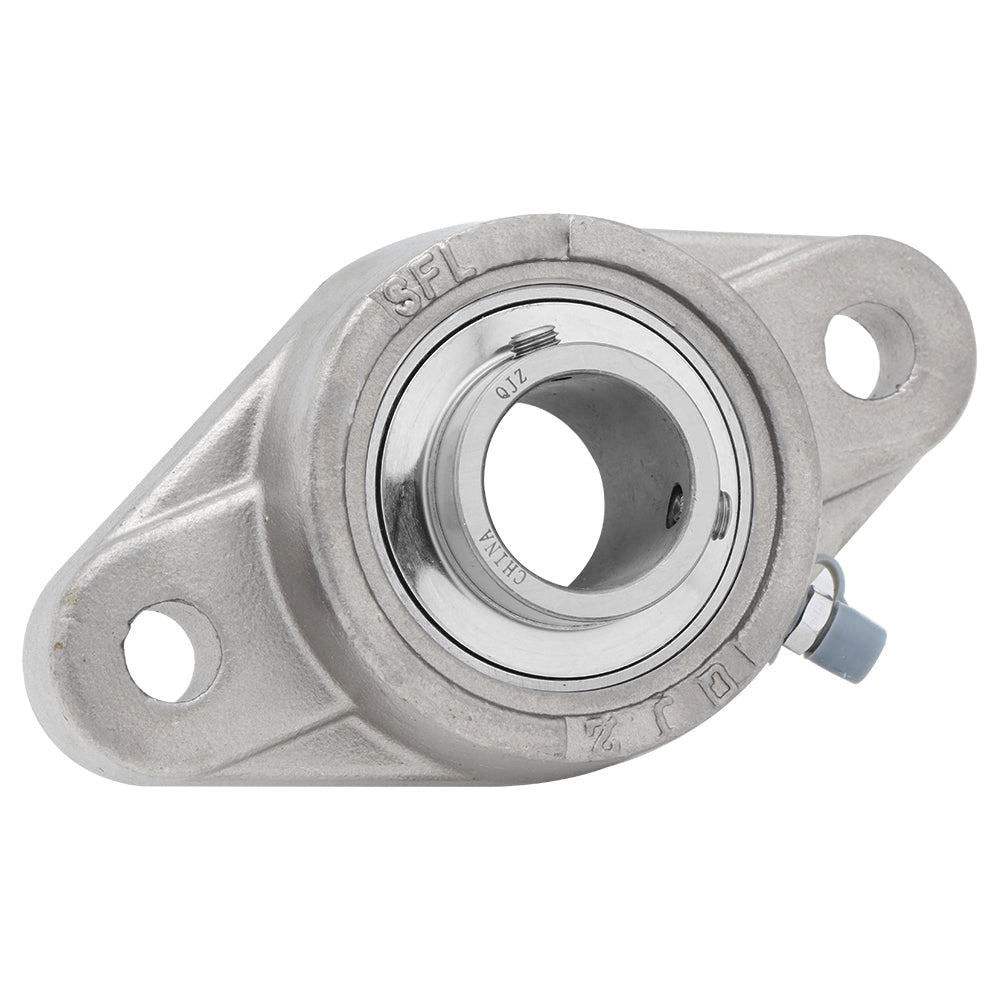

Stainless Steel 2-Bolt Flange Mounted Unit Bearing

The Stainess Steel UC series with (FL) 2-bolt flange mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (SUCS209-28) and a housing (SSFL209) with set-screw locking for secure shaft attachment, easy installation, and long service life. Made of stainless steel, these bearings are resistant to rust, corrosion, and moisture, ensuring long-lasting performance even in harsh environments.

Model SUCSFL208-24
Shaft Bore (ID) 1.5 in | 38.1 mm
Flange Length 6.89 in | 175.006 mm
Flange Width 3.937 in | 100 mm
Height 2.016 in | 51.206 mm
Bolt to Bolt Spacing 5.669 in | 144 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
