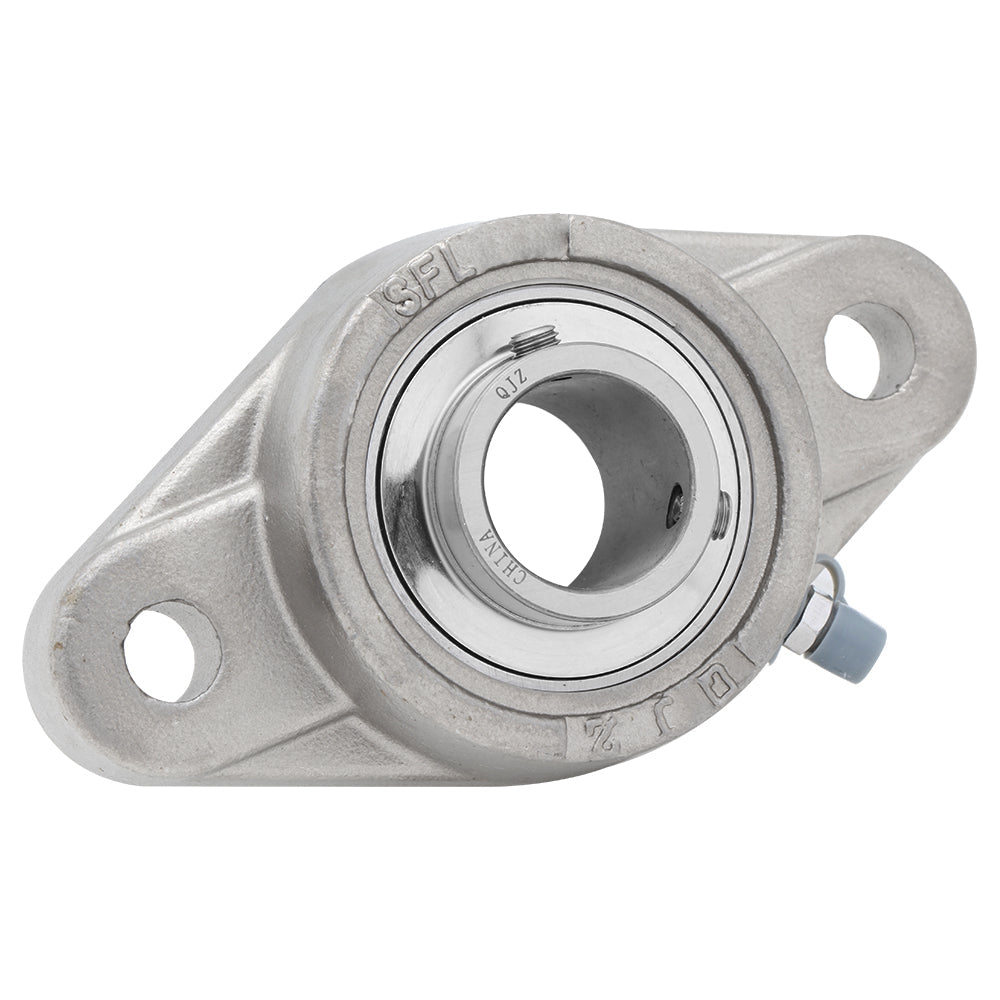

SUCSFL207-20, Stainless Steel 2-Bolt Flange Mounted Ball Bearing, Insert Bearing: UC207-20, Housing: FL207

In stock
SKU: SSUCFL207-20
Material and bore size can be selected below. Dimensions (Bolt to Bolt x Length × Width × Height) remain the same for all options.
$62.75
Product details
  • Part Number SSUCFL207-20
  • Housing SSFL207
  • Insert Bearing SSUC207-20
  • Bore (ID) 1.25 in | 31.75 mm
  • Bolt to Bolt 5.118 in | 130 mm
  • Length 6.339 in | 161 mm
  • Width 3.543 in | 89.992 mm
  • Height 1.748 in | 44.399 mm
Description

Stainless Steel 2-Bolt Flange Mounted Unit Bearing

The Stainess Steel UC series with (FL) 2-bolt flange mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (SUCS209-28) and a housing (SSFL209) with set-screw locking for secure shaft attachment, easy installation, and long service life. Made of stainless steel, these bearings are resistant to rust, corrosion, and moisture, ensuring long-lasting performance even in harsh environments.

Model SUCSFL207-20
Shaft Bore (ID) 1.25 in | 31.75 mm
Flange Length 6.339 in | 161.011 mm
Flange Width 3.543 in | 89.992 mm
Height 1.748 in | 44.399 mm
Bolt to Bolt Spacing 5.118 in | 130 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
