QJZ

SUCSFL206-18, Stainless Steel 2-Bolt Flange Mounted Ball Bearing, Insert Bearing: UC206-18, Housing: FL206

In stock
SKU: SSUCFL206-18
Material and bore size can be selected below. Dimensions (Bolt to Bolt x Length × Width × Height) remain the same for all options.
$42.75
Product details
  • Part Number SSUCFL206-18
  • Housing SSFL206
  • Insert Bearing SSUC206-18
  • Bore (ID) 1.125 in | 28.575 mm
  • Bolt to Bolt 4.606 in | 117 mm
  • Length 5.827 in | 148.006 mm
  • Width 3.15 in | 80.01 mm
  • Height 1.583 in | 40.208 mm
Description

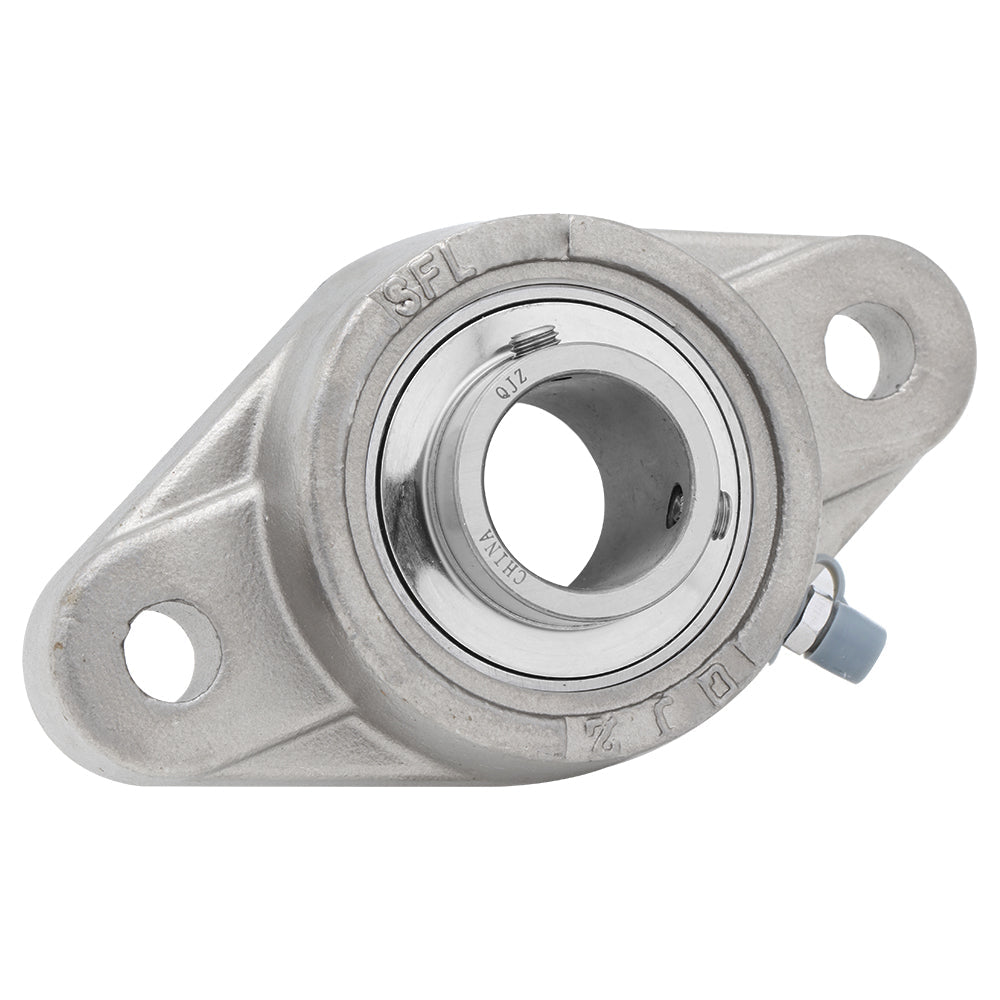

Stainless Steel 2-Bolt Flange Mounted Unit Bearing

The Stainess Steel UC series with (FL) 2-bolt flange mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (SUCS209-28) and a housing (SSFL209) with set-screw locking for secure shaft attachment, easy installation, and long service life. Made of stainless steel, these bearings are resistant to rust, corrosion, and moisture, ensuring long-lasting performance even in harsh environments.

Model SUCSFL206-18
Shaft Bore (ID) 1.125 in | 28.575 mm
Flange Length 5.827 in | 148.006 mm
Flange Width 3.15 in | 80.01 mm
Height 1.583 in | 40.208 mm
Bolt to Bolt Spacing 4.606 in | 117 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
