SUCSFL205, Stainless Steel 2-Bolt Flange Mounted Ball Bearing, Insert Bearing: UC205, Housing: FL205

Out of stock
SKU: SSUCFL205
Material and bore size can be selected below. Dimensions (Bolt to Bolt x Length × Width × Height) remain the same for all options.
$47.50
Product details
  • Part Number SSUCFL205
  • Housing SSFL205
  • Insert Bearing SSUC205
  • Bore (ID) 0.984 in | 25 mm
  • Bolt to Bolt 3.898 in | 99 mm
  • Length 5.118 in | 130 mm
  • Width 2.677 in | 68 mm
  • Height 1.409 in | 35.789 mm
Description

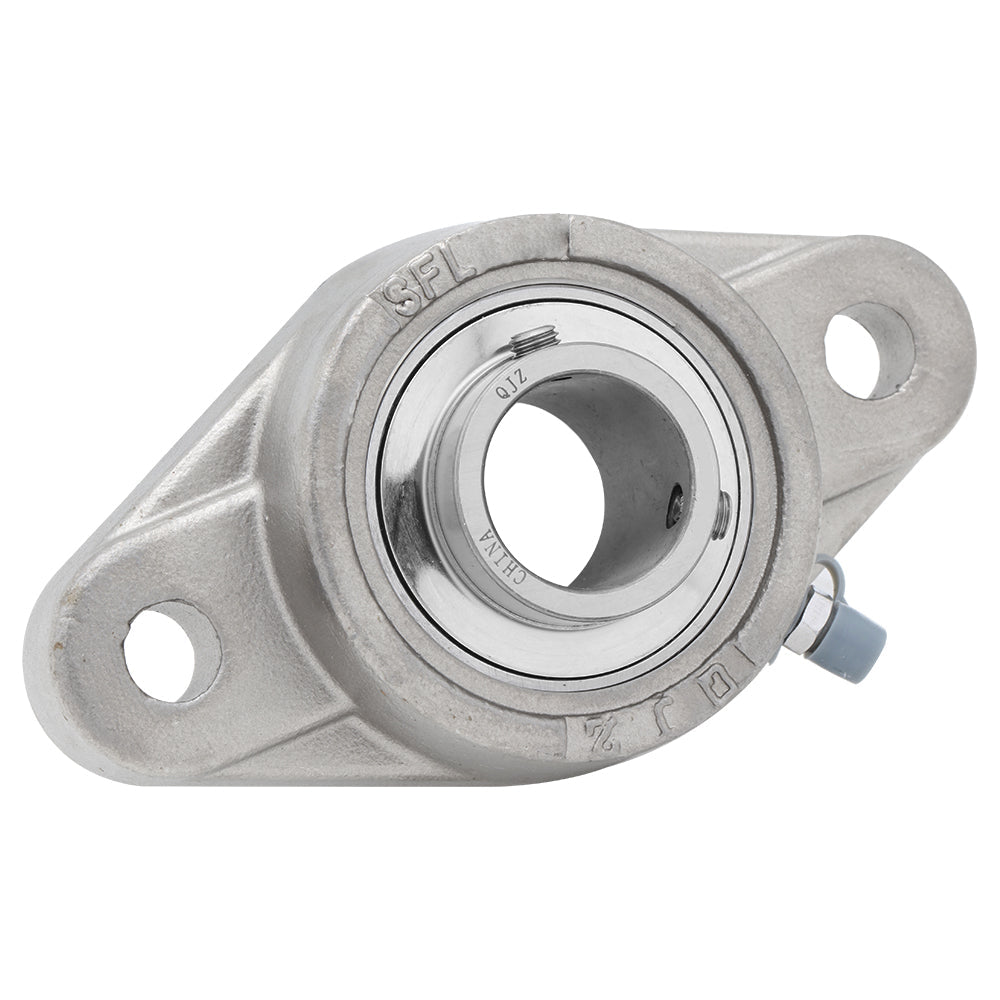

Stainless Steel 2-Bolt Flange Mounted Unit Bearing

The Stainess Steel UC series with (FL) 2-bolt flange mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (SUCS209-28) and a housing (SSFL209) with set-screw locking for secure shaft attachment, easy installation, and long service life. Made of stainless steel, these bearings are resistant to rust, corrosion, and moisture, ensuring long-lasting performance even in harsh environments.

Model SUCSFL205
Shaft Bore (ID) 0.984 in | 25 mm
Flange Length 5.118 in | 130 mm
Flange Width 2.677 in | 68 mm
Height 1.409 in | 35.789 mm
Bolt to Bolt Spacing 3.898 in | 99 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
