QJZ

SUCSFL202-10, Stainless Steel 2-Bolt Flange Mounted Ball Bearing, Insert Bearing: UC202-10, Housing: FL202

Out of stock
SKU: SSUCFL202-10
Material and bore size can be selected below. Dimensions (Bolt to Bolt x Length × Width × Height) remain the same for all options.
$57.25
Product details
  • Part Number SSUCFL202-10
  • Housing SSFL203
  • Insert Bearing SSUCW202-10
  • Bore (ID) 0.625 in | 15.875 mm
  • Bolt to Bolt 3.012 in | 76.5 mm
  • Length 3.898 in | 99.009 mm
  • Width 2.244 in | 56.998 mm
  • Height 1.22 in | 30.988 mm
Description

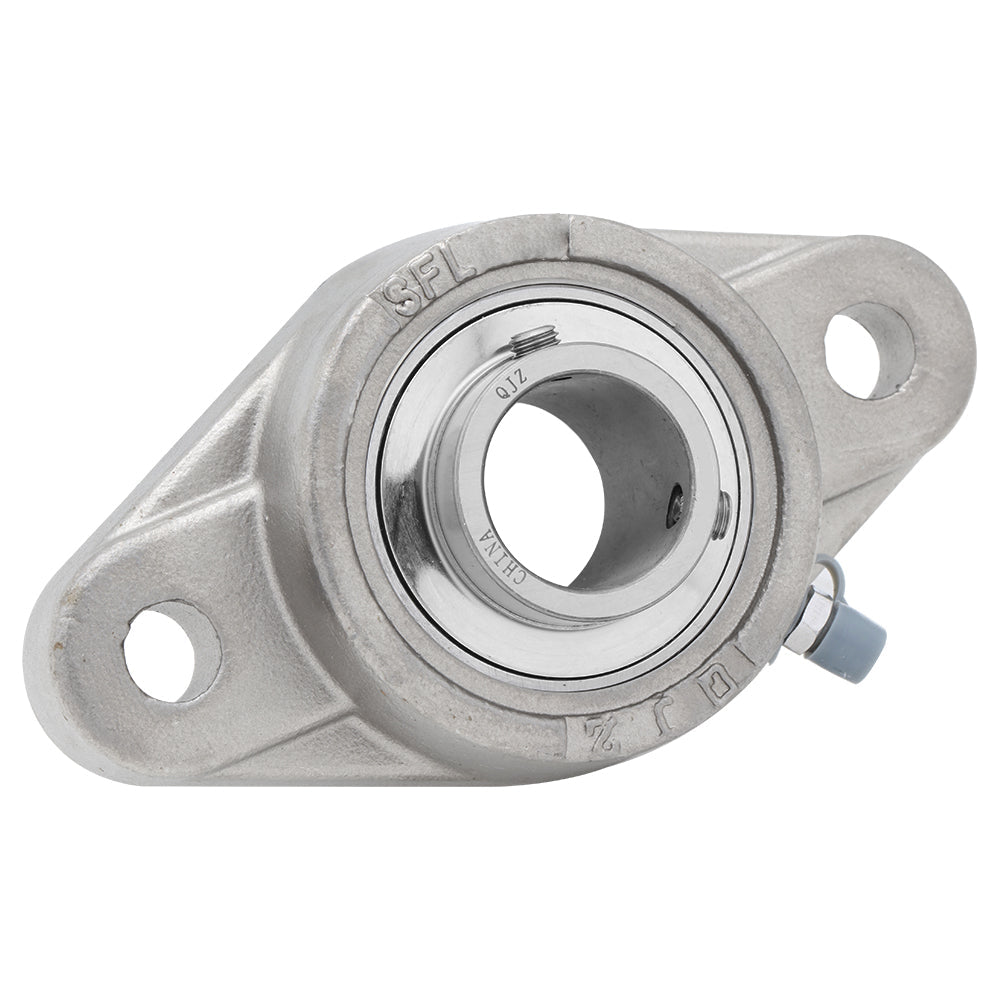

Stainless Steel 2-Bolt Flange Mounted Unit Bearing

The Stainess Steel UC series with (FL) 2-bolt flange mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (SUCS209-28) and a housing (SSFL209) with set-screw locking for secure shaft attachment, easy installation, and long service life. Made of stainless steel, these bearings are resistant to rust, corrosion, and moisture, ensuring long-lasting performance even in harsh environments.

Model SUCSFL202-10
Shaft Bore (ID) 0.625 in | 15.875 mm
Flange Length 3.898 in | 99.009 mm
Flange Width 2.244 in | 56.998 mm
Height 1.22 in | 30.988 mm
Bolt to Bolt Spacing 3.012 in | 76.5 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
