SUCSFB209, Stainless Steel 3-Bolt Flange Mounted Ball Bearing, Insert Bearing: SUCS209, Housing: FB209

Out of stock
SKU: SSUCFB209
All of our mounted unit bearings are provided fully assembled. Should you require to receive insert bearing and housing separately, please contact us for assistance.
$85.50
Product details
  • Type Mounted Unit Bearings
  • Part Number SSUCFB209
  • Insert Bearing SSUC209
  • Cast Iron Housing SSFB209
  • Bore (ID) 1.77 in
  • Length 6.89 in | 175 mm
  • Height 2.055 in | 52.197 mm
  • Width 4.252 in | 108 mm

Please contact us for more information on dimensions.

Description

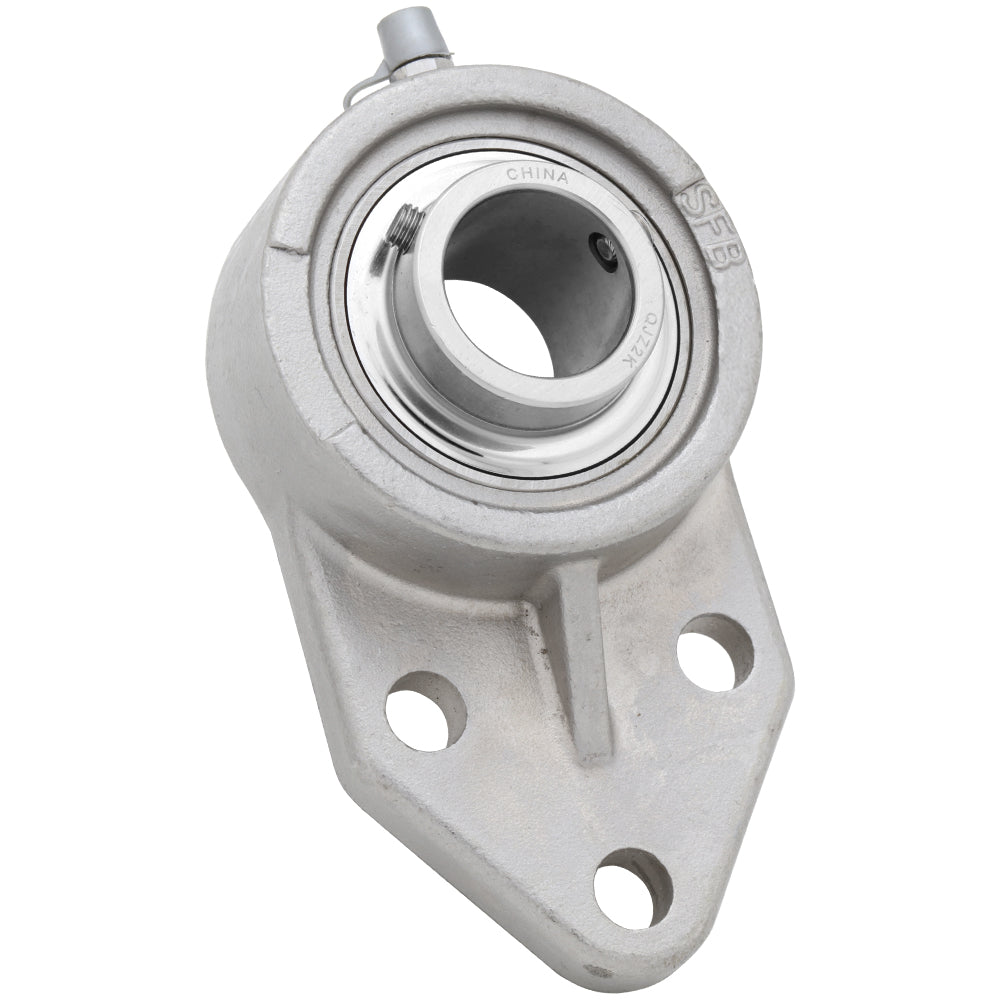

Stainless Steel 3-Bolt Mounted Unit Ball Bearing

The UC series 3-bolt mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (SUCS209) and housing(FB209) with set-screw locking for secure shaft attachment, easy installation, and long service life.

Model SUCSFB209
Shaft Bore (ID) 1.772 in | 45 mm
Length 6.89 in | 175 mm
Height 2.055 in | 52.197 mm
Width 4.252 in | 108 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
