SUCSFB207, Stainless Steel 3-Bolt Flange Mounted Ball Bearing, Insert Bearing: SUCS207, Housing: FB207

Out of stock
SKU: SSUCFB207
All of our mounted unit bearings are provided fully assembled. Should you require to receive insert bearing and housing separately, please contact us for assistance.
$62.25
Product details
  • Type Mounted Unit Bearings
  • Part Number SSUCFB207
  • Insert Bearing SSUC207
  • Cast Iron Housing SSFB207
  • Bore (ID) 1.38 in
  • Length 5.669 in | 144 mm
  • Height 1.748 in | 44.399 mm
  • Width 3.543 in | 90 mm

Please contact us for more information on dimensions.

Description

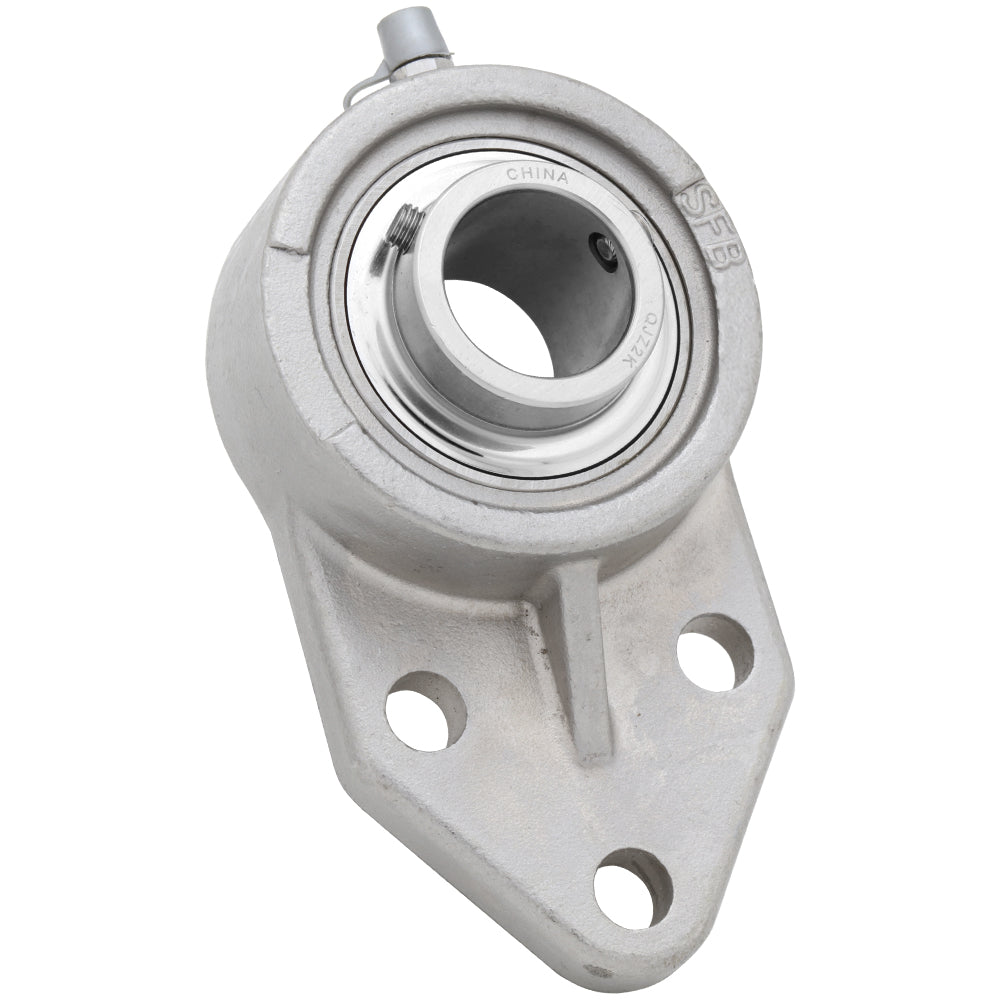

Stainless Steel 3-Bolt Mounted Unit Ball Bearing

The UC series 3-bolt mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (SUCS207) and housing(FB207) with set-screw locking for secure shaft attachment, easy installation, and long service life.

Model SUCSFB207
Shaft Bore (ID) 1.378 in | 35 mm
Length 5.669 in | 144 mm
Height 1.748 in | 44.399 mm
Width 3.543 in | 90 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
