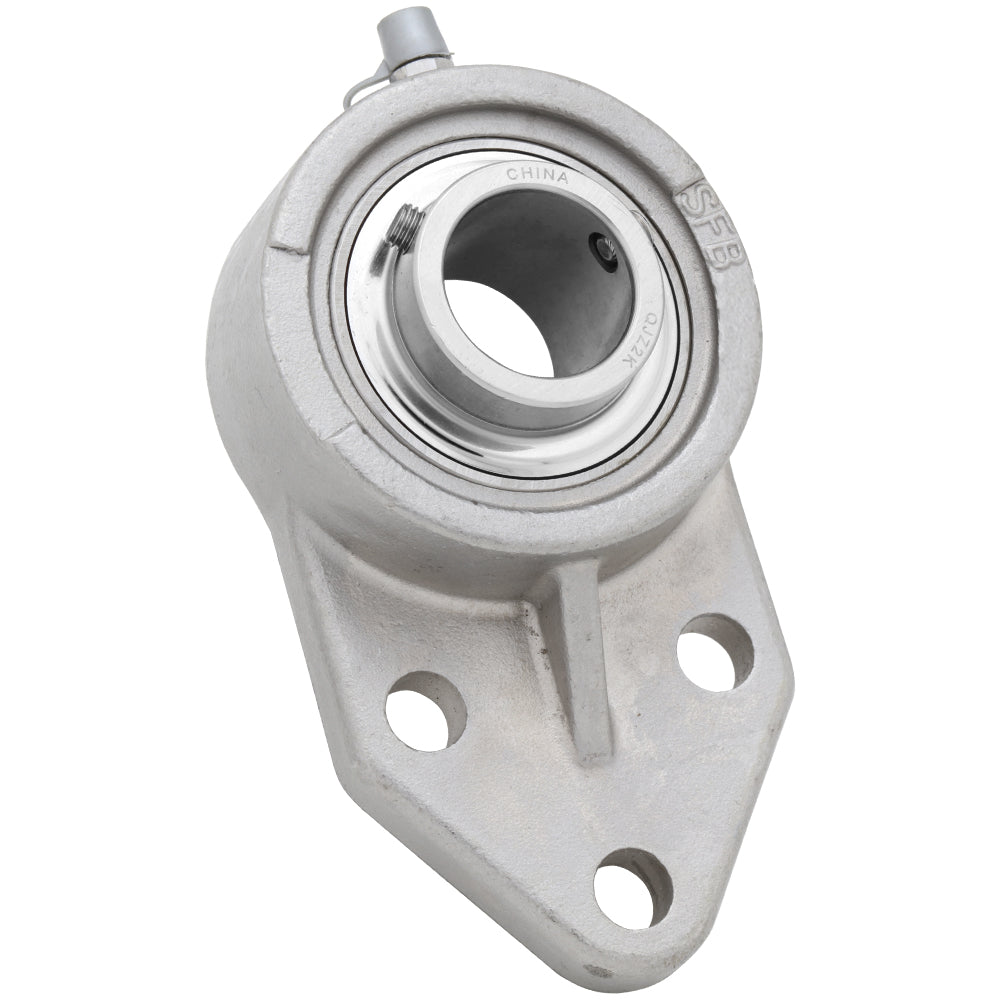

SUCSFB205-15, Stainless Steel 3-Bolt Flange Mounted Ball Bearing, Insert Bearing: SUCS205-15, Housing: FB205

Out of stock
SKU: SSUCFB205-15
All of our mounted unit bearings are provided fully assembled. Should you require to receive insert bearing and housing separately, please contact us for assistance.
$33.50
Product details
  • Type Mounted Unit Bearings
  • Part Number SSUCFB205-15
  • Insert Bearing SSUC205-15
  • Cast Iron Housing SSFB205
  • Bore (ID) 0.94 in
  • Length 4.567 in | 116 mm
  • Height 1.406 in | 35.712 mm
  • Width 2.677 in | 68 mm

Please contact us for more information on dimensions.

Description

Stainless Steel 3-Bolt Mounted Unit Ball Bearing

The UC series 3-bolt mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (SUCS205-15) and housing(FB205) with set-screw locking for secure shaft attachment, easy installation, and long service life.

Model SUCSFB205-15
Shaft Bore (ID) 0.938 in | 23.813 mm
Length 4.567 in | 116 mm
Height 1.406 in | 35.712 mm
Width 2.677 in | 68 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
