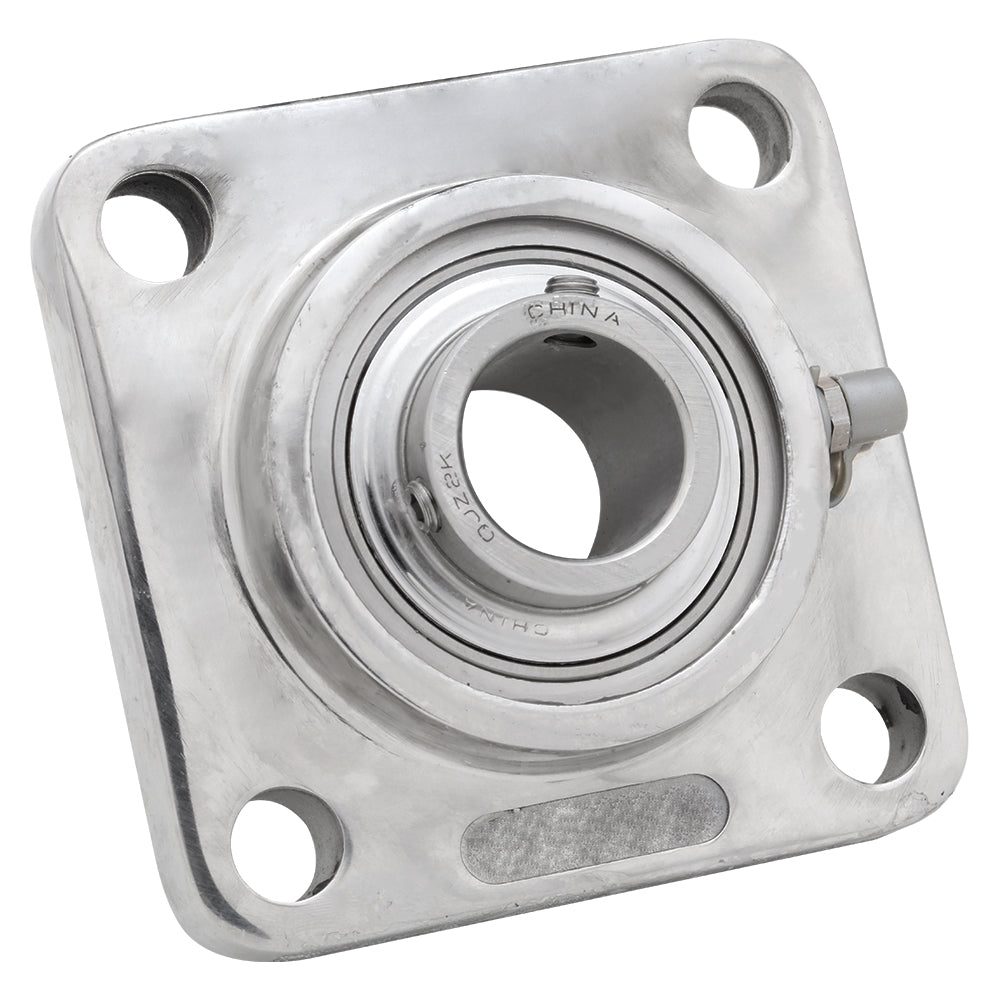

SUCSF207-23, Stainless Steel 4-Bolt Flange Mounted Unit Bearing, 1 7/16 in Bore (ID), Insert Bearing: UC207-23, Housing: F207, with Locking Collar
Regular price
$82.25
Couldn't load pickup availability
Stainless Steel 4-Bolt Flange Mounted Unit Ball Bearing
The Stainless Steel UC Series 4-bolt flange Stainless Steel Mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (UC207-23) and a Housing (F207) with a locking collar, designed for easy installation and long-lasting performance. Made of stainless steel, these bearings are resistant to rust, corrosion, and moisture, ensuring long-lasting performance even in harsh environments.
| Model | SUCSF207-23 |
|---|---|
| Shaft Bore (ID) | 1.438 in | 36.513 mm |
| Overall Flange Width | 4.606 in | 117 mm |
| Flange Height (Thickness) | 1.906 in | 48.4 mm |
| Bolt to Bolt Spacing | 3.622 in | 92 mm |
| Bolt Size | M12 |
Applications
- Conveyor systems
- Agricultural machinery
- Material handling
- General industrial machinery
