SUCSF206-20, Stainless Steel 4-Bolt Flange Mounted Unit Bearing, 1 3/4 in Bore (ID), Insert Bearing: UC206-20, Housing: F206, with Locking Collar

In stock
SKU: SSUCF206-20
$51.75
Product details
  • Type Stainless Steel Mounted Unit Bearings
  • Part Number SSUCF206-20
  • Bore (ID) 1.25 in | 31.75 mm
  • Length 4.252 in | 108 mm
  • Height (Thickness) 1.76 in | 44.7 mm
  • Bolt-to-Bolt Spacing 3.268 in | 83 mm
Description

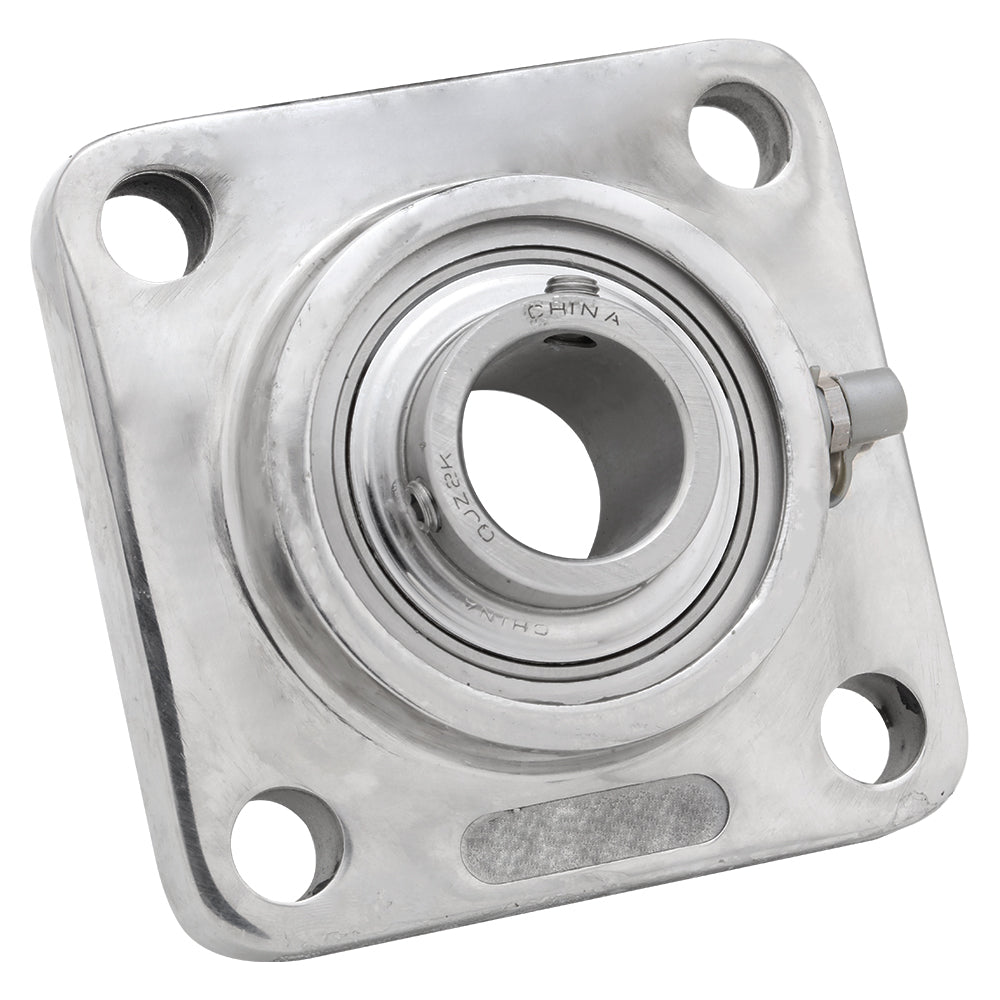

Stainless Steel 4-Bolt Flange Mounted Unit Ball Bearing

The Stainless Steel UC Series 4-bolt flange Stainless Steel Mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (UC206-20) and a Housing (F206) with a locking collar, designed for easy installation and long-lasting performance. Made of stainless steel, these bearings are resistant to rust, corrosion, and moisture, ensuring long-lasting performance even in harsh environments.

Model SUCSF206-20
Shaft Bore (ID) 1.25 | 31.75 mm
Overall Flange Width 4.252 in | 108 mm
Flange Height (Thickness) 1.76 in | 44.7 mm
Bolt to Bolt Spacing 3.268 in | 83 mm
Bolt Size M10

Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
