SUCSF205-16, Stainless Steel 4-Bolt Flange Mounted Unit Bearing, 1 in Bore (ID), Insert Bearing: UC205-16, Housing: F205, with Locking Collar

In stock
SKU: SSUCF205-16
$31.25
Product details
  • Type Stainless Steel Mounted Unit Bearings
  • Part Number SSUCF205-16
  • Bore (ID) 1 in | 25.4 mm
  • Length 3.74 in | 95 mm
  • Height (Thickness) 1.551 in | 39.4 mm
  • Bolt-to-Bolt Spacing 2.756 in | 70 mm
Description

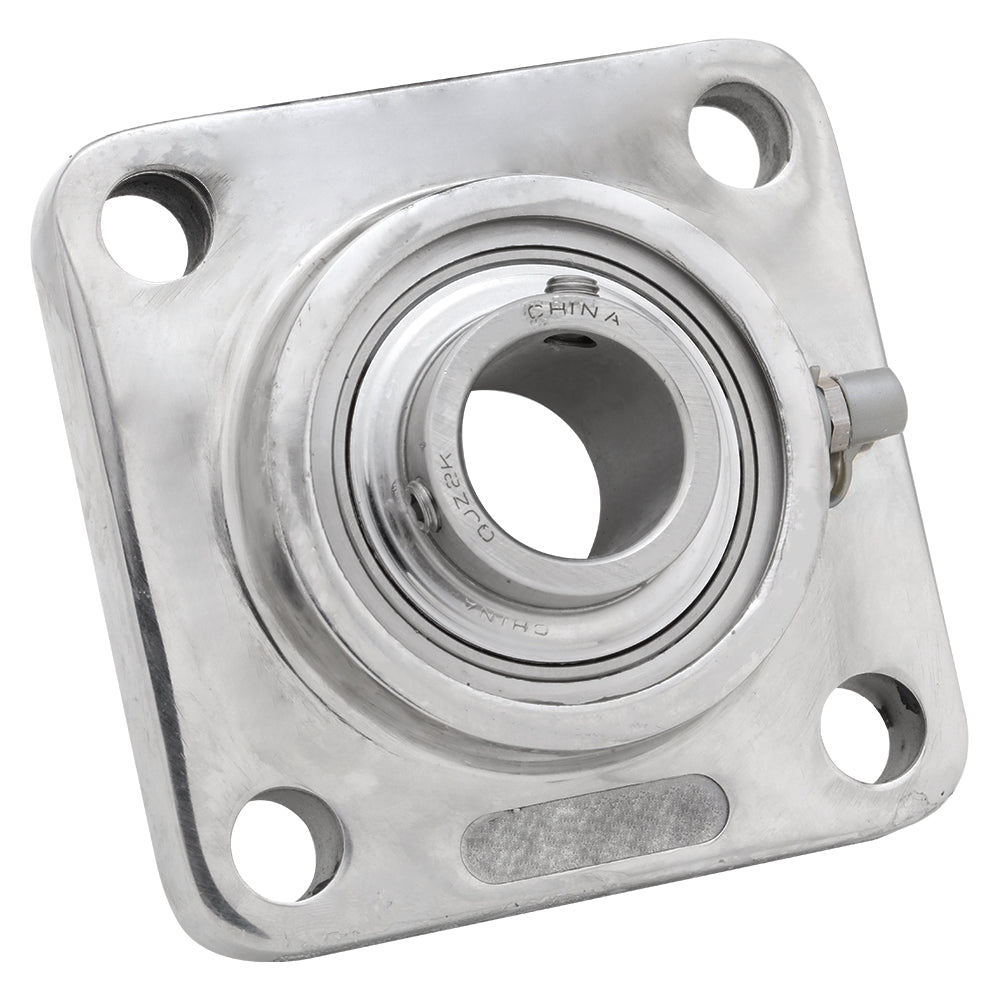

Stainless Steel 4-Bolt Flange Mounted Unit Ball Bearing

The Stainless Steel UC Series 4-bolt flange Stainless Steel Mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (UC205-16) and a Housing (F205) with a locking collar, designed for easy installation and long-lasting performance. Made of stainless steel, these bearings are resistant to rust, corrosion, and moisture, ensuring long-lasting performance even in harsh environments.

Model SUCSF205-16
Shaft Bore (ID) 1 | 25.4 mm
Overall Flange Width 3.74 in | 95 mm
Flange Height (Thickness) 1.551 in | 39.4 mm
Bolt to Bolt Spacing 2.756 in | 70 mm
Bolt Size M10

Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
