SUCSF203, Stainless Steel 4-Bolt Flange Mounted Unit Bearing, 0.669 in Bore (ID), Insert Bearing: UC203, Housing: F204, with Locking Collar

Out of stock
SKU: SSUCF203
$38.50
Product details
  • Type Stainless Steel Mounted Unit Bearings
  • Part Number SSUCF203
  • Insert Bearing UC203
  • Housing F204
  • Bore (ID) 0.669 in | 17 mm
  • Length 2.992 in | 76 mm
  • Height (Thickness) 1.461 in | 37.1 mm
  • Bolt-to-Bolt Spacing 2.126 in | 54 mm
Description

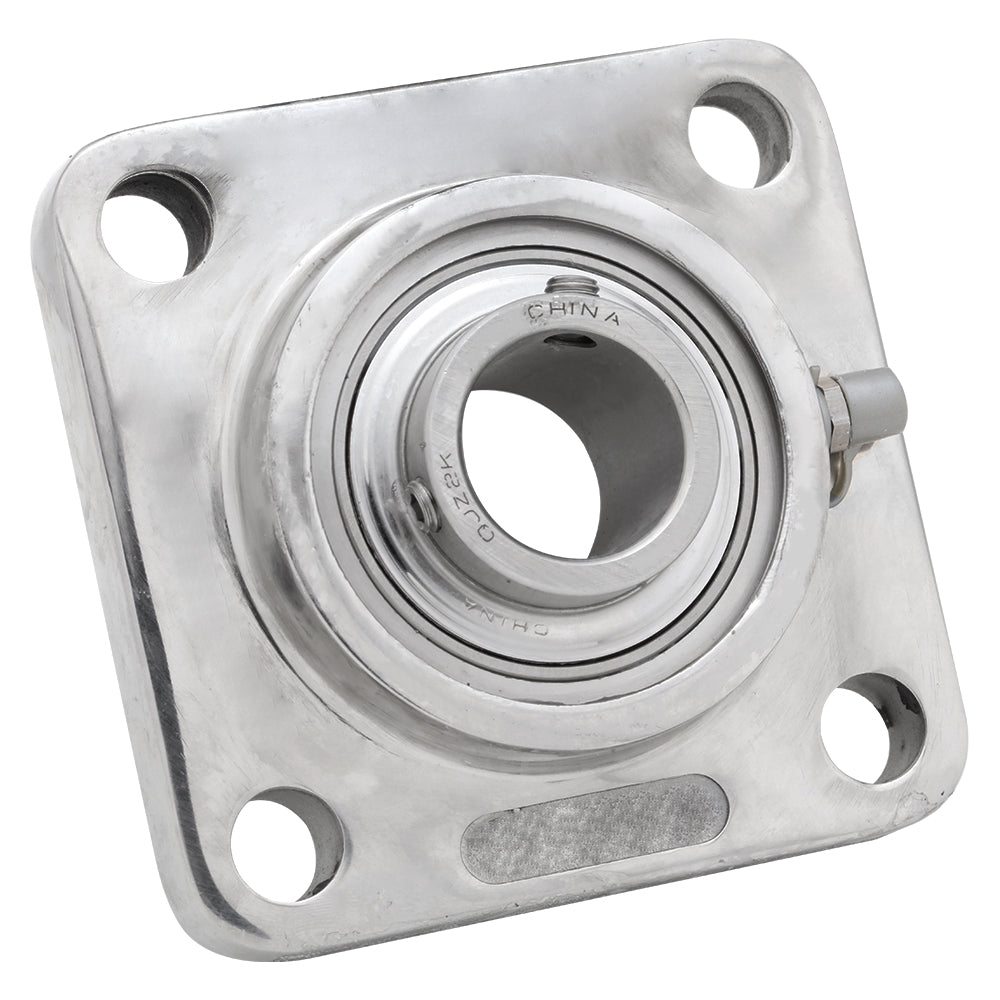

Stainless Steel 4-Bolt Flange Mounted Unit Ball Bearing

The Stainless Steel UC Series 4-bolt flange Stainless Steel Mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (UC203) and a Housing (F204) with a locking collar, designed for easy installation and long-lasting performance. Made of stainless steel, these bearings are resistant to rust, corrosion, and moisture, ensuring long-lasting performance even in harsh environments.

Model SUCSF203
Shaft Bore (ID) 0.669 | 17 mm
Overall Flange Width 2.992 in | 76 mm
Flange Height (Thickness) 1.461 in | 37.1 mm
Bolt to Bolt Spacing 2.126 in | 54 mm
Bolt Size M10


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
