QJZ

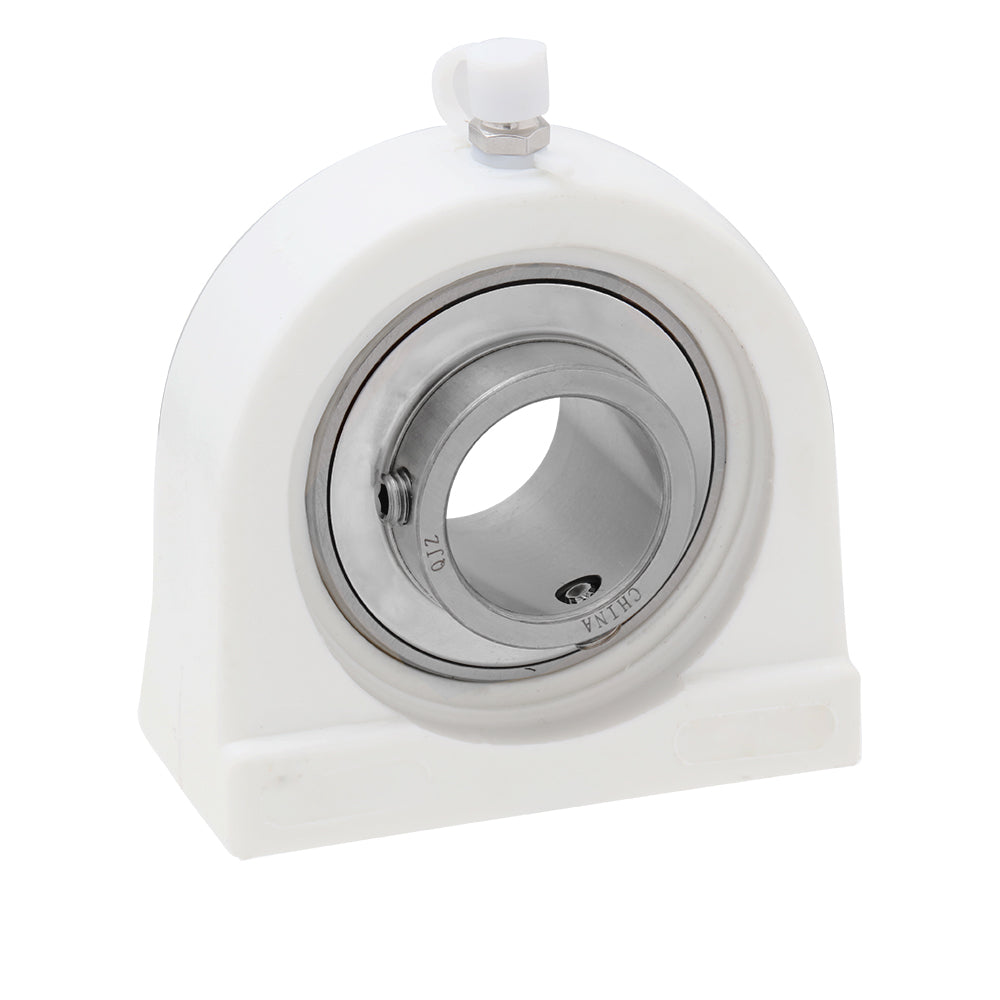

SPUCTB207-22-R3, Plastic Tapped Based Mounted Unit Bearing, 1.375 in Bore (ID), Stainless Steel Insert Bearing: SUC207-22R3, Housing: TB207 (P)

Out of stock
$93.95
Product details
  • Type Mounted Unit Bearings
  • Part Number SPUCTB207-22-R3
  • Housing TB207 (P)
  • Insert Bearing SUC207-22R3
  • Bore (ID) 1.375 in | 34.925 mm
  • Height 3.752 in | 95.3 mm
  • Length 1.874 in | 47.6 mm
  • Bolt to Bolt 3.248 in | 82.5 mm
Description

Plastic Tapped Based Pillow Block Mounted Unit Bearing

The UC Series Tapped Based Pillow Block Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with locking set screw for secure shaft attachment, easy installation, and long service life. The insert bearing is made of stainless steel and the housing is constructed from durable plastic, offering excellent corrosion resistance and lightweight strength for demanding applications.

Part Number SPUCTB207-22-R3
Bore ID 1.375 in | 34.925 mm
Length 1.874 in | 47.6 mm
Height 3.752 in | 95.3 mm
Width 4.248 in | 107.9 mm
Bolt to Bolt 3.248 in | 82.5 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
