QJZ

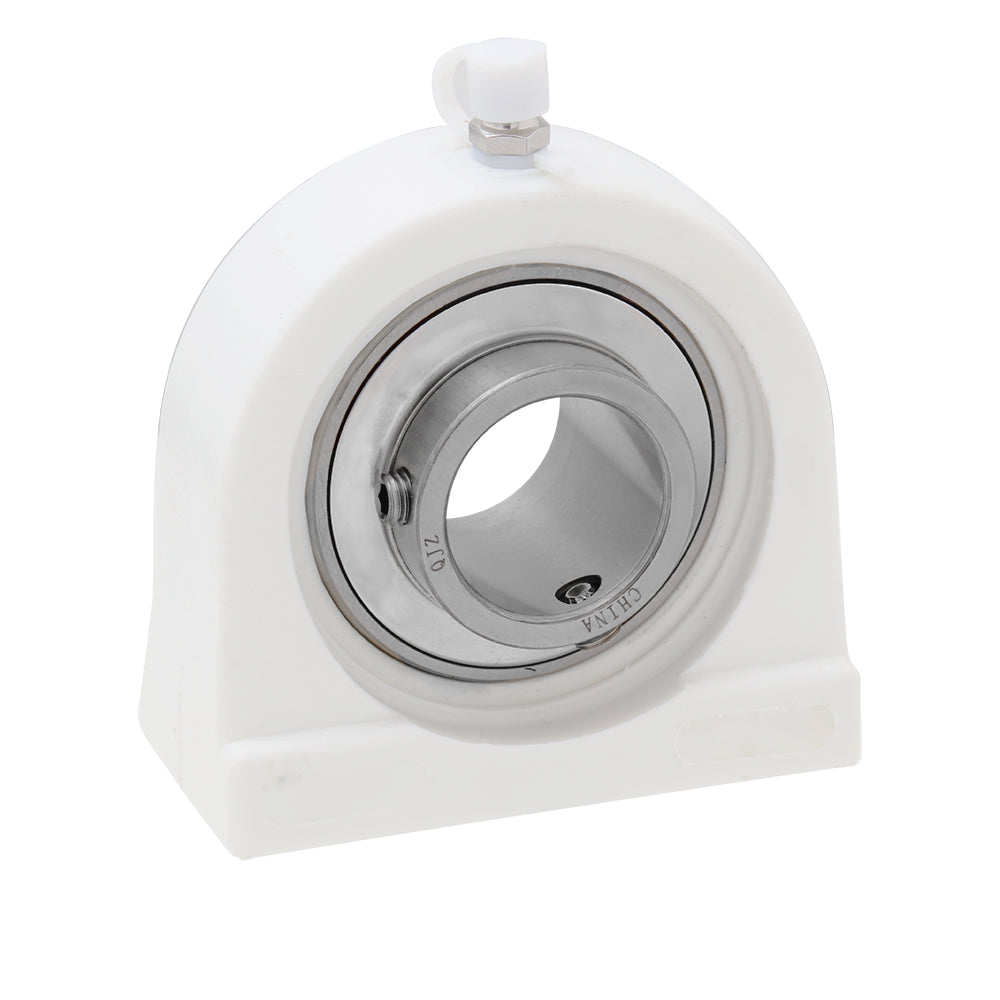

SPUCTB206-19, Plastic Tapped Based Mounted Unit Bearing, 1.1875 in Bore (ID), Stainless Steel Insert Bearing: SUC206-19, Housing: TB206 (P)

In stock
$48.75
Product details
  • Type Mounted Unit Bearings
  • Part Number SPUCTB206-19
  • Housing TB206 (P)
  • Insert Bearing SUC206-19
  • Bore (ID) 1.188 in | 30.163 mm
  • Height 3.374 in | 85.7 mm
  • Length 1.689 in | 42.9 mm
  • Bolt to Bolt 3 in | 76.2 mm
Description

Plastic Tapped Based Pillow Block Mounted Unit Bearing

The UC Series Tapped Based Pillow Block Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with locking set screw for secure shaft attachment, easy installation, and long service life. The insert bearing is made of stainless steel and the housing is constructed from durable plastic, offering excellent corrosion resistance and lightweight strength for demanding applications.

Part Number SPUCTB206-19
Bore ID 1.188 in | 30.163 mm
Length 1.689 in | 42.9 mm
Height 3.374 in | 85.7 mm
Width 4 in | 101.6 mm
Bolt to Bolt 3 in | 76.2 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
