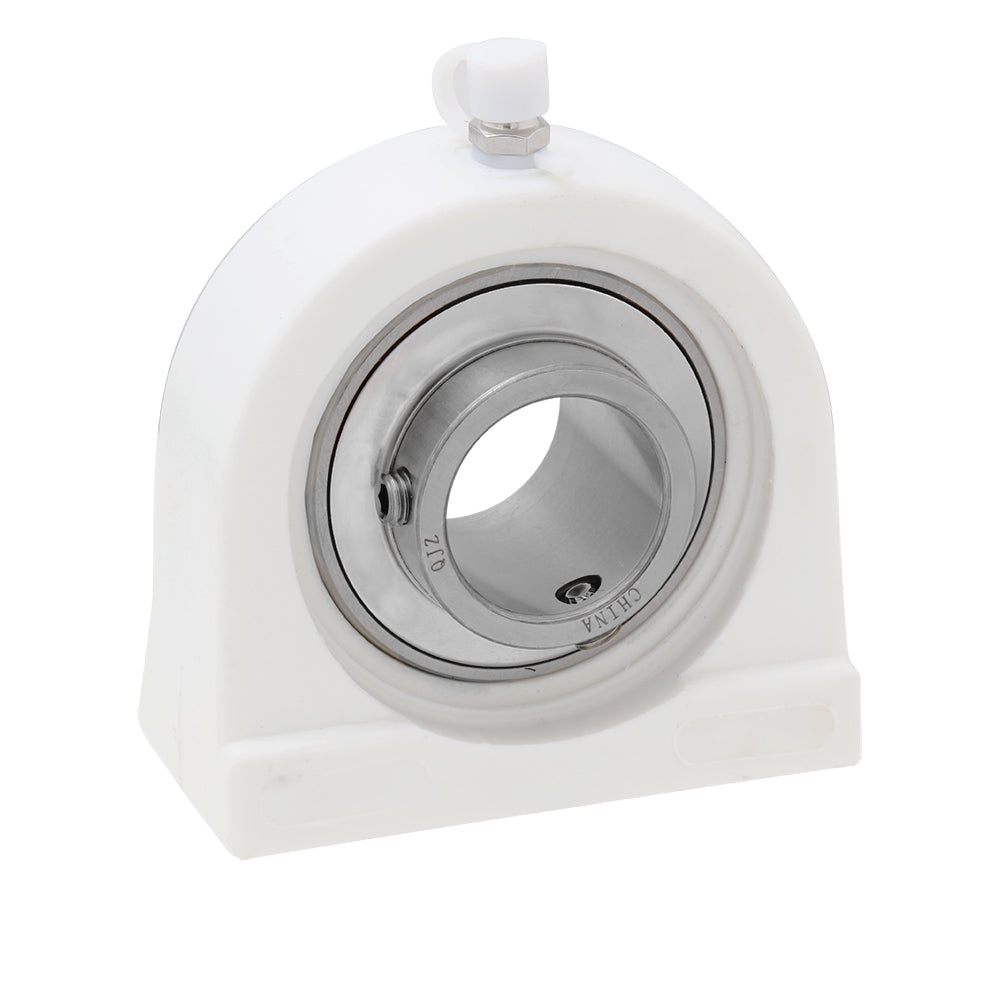

SPUCTB205, Plastic Tapped Based Mounted Unit Bearing, 0.984 in Bore (ID), Stainless Steel Insert Bearing: SUC205, Housing: TB205 (P)

In stock
$33.50
Product details
  • Type Mounted Unit Bearings
  • Part Number SPUCTB205
  • Housing TB205 (P)
  • Insert Bearing SUC205
  • Bore (ID) 0.984 in | 25 mm
  • Height 2.811 in | 71.4 mm
  • Length 1.437 in | 36.5 mm
  • Bolt to Bolt 2 in | 50.8 mm
Description

Plastic Tapped Based Pillow Block Mounted Unit Bearing

The UC Series Tapped Based Pillow Block Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with locking set screw for secure shaft attachment, easy installation, and long service life. The insert bearing is made of stainless steel and the housing is constructed from durable plastic, offering excellent corrosion resistance and lightweight strength for demanding applications.

Part Number SPUCTB205
Bore ID 0.984 in | 25 mm
Length 1.437 in | 36.5 mm
Height 2.811 in | 71.4 mm
Width 3 in | 76.2 mm
Bolt to Bolt 2 in | 50.8 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
