QJZ

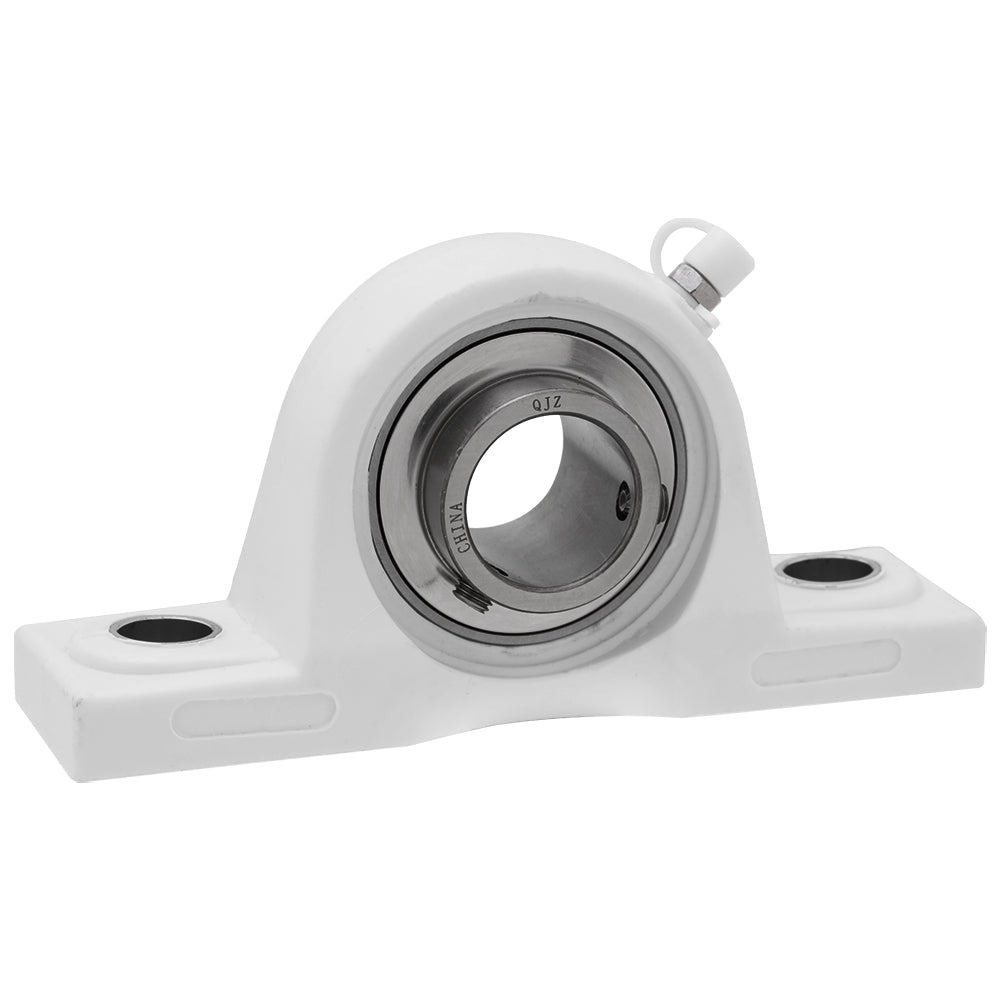

SPUCP209, Plastic Pillow Block Mounted Unit Bearing, 1.772 in Bore (ID), Insert Bearing: SUC209, Housing: P209 (P)

Out of stock
$59.75
Product details
  • Type Mounted Unit Bearings
  • Part Number SPUCP209
  • Housing P209 (P)
  • Insert Bearing SUC209
  • Bore (ID) 1.772 in | 45 mm
  • Height 4.17 in | 106 mm
  • Length 7.441 in | 189 mm
  • Bolt to Bolt 5.75 in | 146 mm
Description

Pillow Block Mounted Unit Bearing

The UC Series Pillow Block Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with locking set screw for secure shaft attachment, easy installation, and long service life. The insert bearing is made of stainless steel and the housing is constructed from durable plastic, offering excellent corrosion resistance and lightweight strength for demanding applications.

Part Number SPUCP209
Bore ID 1.772 in | 45 mm
Length 7.44 in | 189 mm
Width 2.13 in | 54 mm
Height (Thickness) 4.17 in | 106 mm
Bolt to Bolt 5.75 in | 146 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
