SPUCP207-22, Plastic Pillow Block Mounted Unit Bearing, 1.375 in Bore (ID), Insert Bearing: SUC207-22, Housing: P207 (P)
Regular price
$57.75
Couldn't load pickup availability

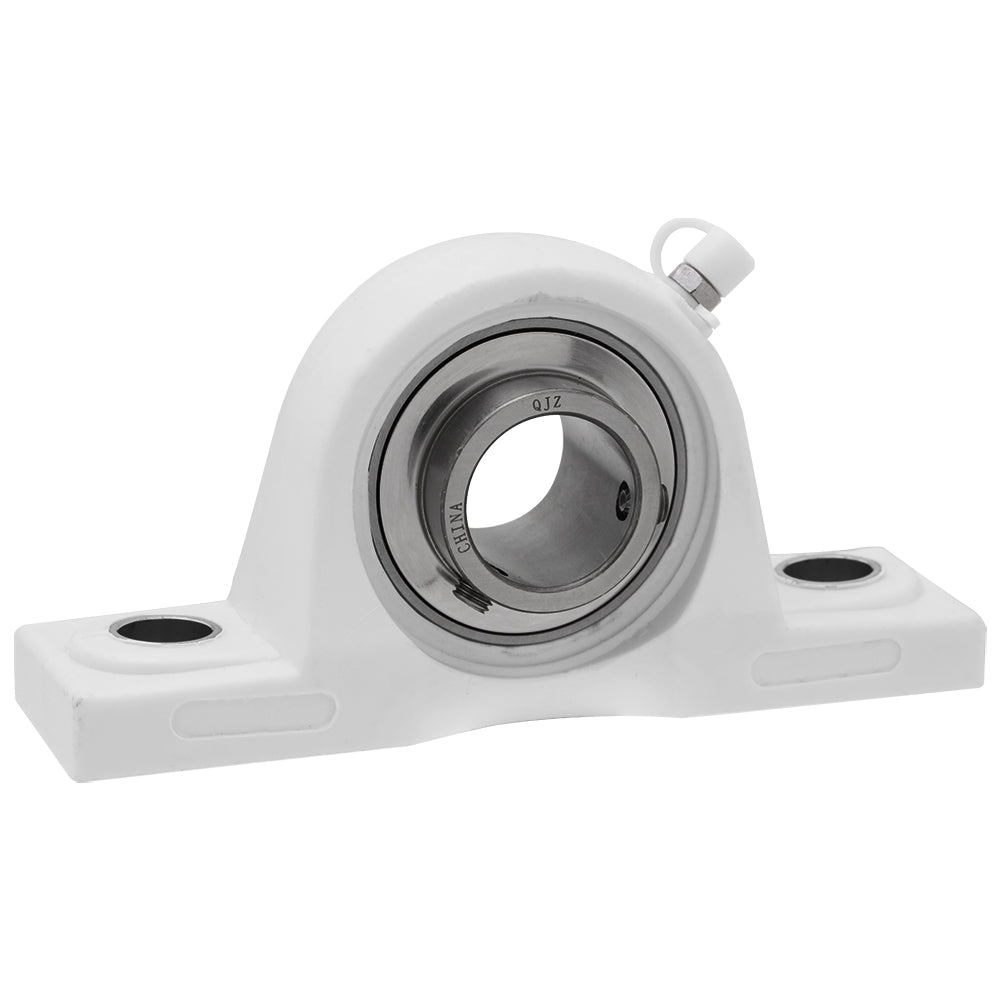

Pillow Block Mounted Unit Bearing
The UC Series Pillow Block Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with locking set screw for secure shaft attachment, easy installation, and long service life. The insert bearing is made of stainless steel and the housing is constructed from durable plastic, offering excellent corrosion resistance and lightweight strength for demanding applications.
| Part Number | SPUCP207-22 |
|---|---|
| Bore ID | 1.375 in | 34.925 mm |
| Length | 6.575 in | 167 mm |
| Width | 1.89 in | 48 mm |
| Height (Thickness) | 3.622 in | 92 mm |
| Bolt to Bolt | 4.961 in | 126 mm |
Applications
- Conveyor systems
- Agricultural machinery
- Material handling
- General industrial machinery
