SPUCP206-20R3, Plastic Pillow Block Mounted Unit Bearing, 1.25 in Bore (ID), Insert Bearing: SUC206-20R3, Housing: P206 (P)

In stock
$41.75
Product details
  • Type Mounted Unit Bearings
  • Part Number SPUCP206-20R3
  • Housing P206 (P)
  • Insert Bearing SUC206-20R3
  • Bore (ID) 1.25 in | 31.75 mm
  • Height 3.228 in | 82 mm
  • Length 6.299 in | 160 mm
  • Bolt to Bolt 4.764 in | 121 mm
Description

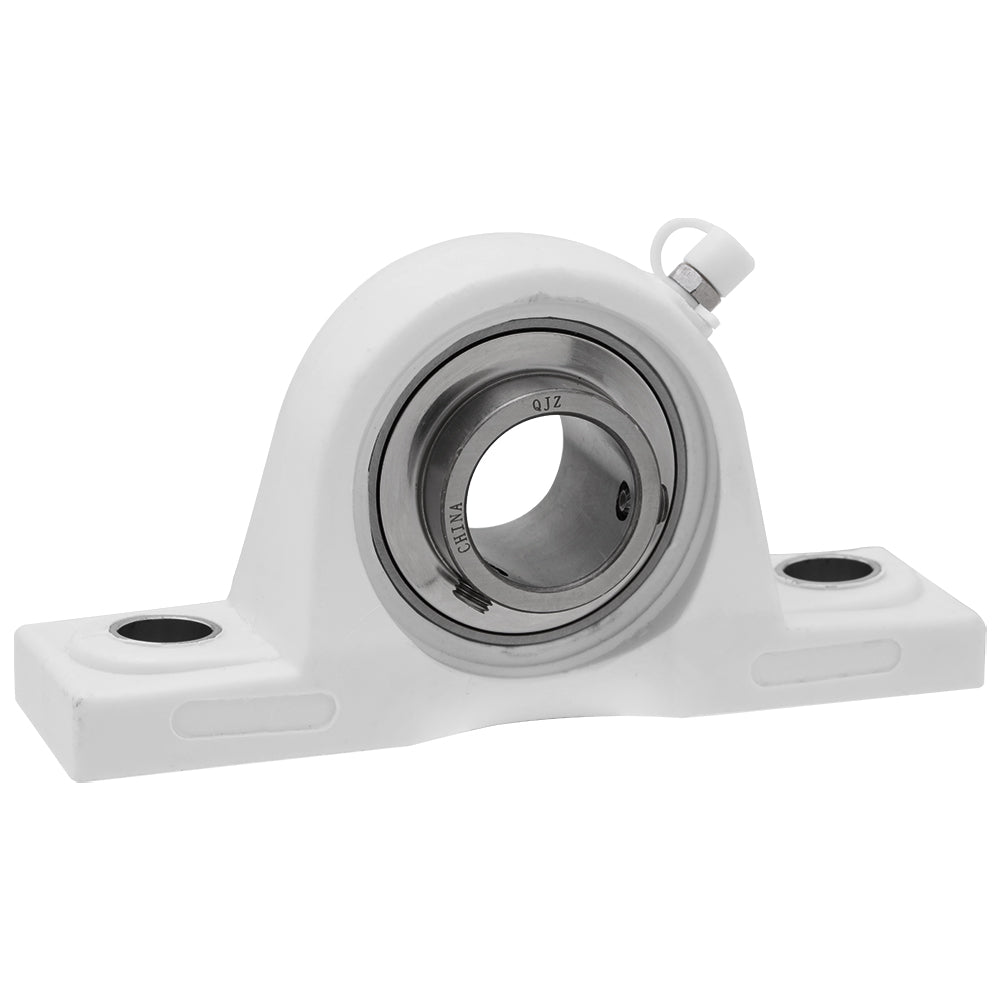

Pillow Block Mounted Unit Bearing

The UC Series Pillow Block Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with locking set screw for secure shaft attachment, easy installation, and long service life. The insert bearing is made of stainless steel and the housing is constructed from durable plastic, offering excellent corrosion resistance and lightweight strength for demanding applications.

Part Number SPUCP206-20R3
Bore ID 1.25 in | 31.75 mm
Length 6.299 in | 160 mm
Width 1.732 in | 44 mm
Height (Thickness) 3.228 in | 82 mm
Bolt to Bolt 4.764 in | 121 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
