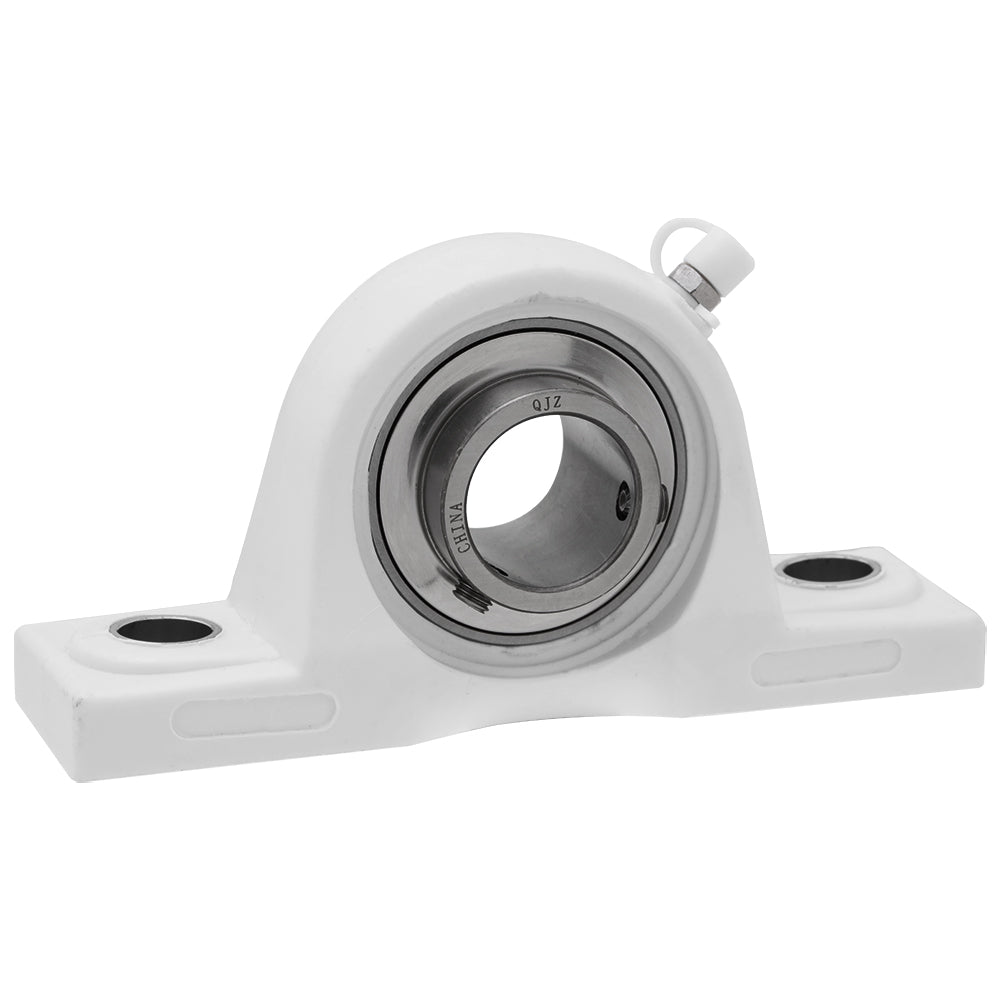

SPUCP204-12-R3, Plastic Pillow Block Mounted Unit Bearing, 0.75 in Bore (ID), Insert Bearing: SUC204-12 R3, Housing: P204 (P)

In stock
$32.75
Product details
  • Type Mounted Unit Bearings
  • Part Number SPUCP204-12-R3
  • Housing P204 (P)
  • Insert Bearing SUC204-12 R3
  • Bore (ID) 0.75 in | 19.05 mm
  • Height 2.52 in | 64 mm
  • Length 5 in | 127 mm
  • Bolt to Bolt 3.78 in | 96 mm
Description

Pillow Block Mounted Unit Bearing

The UC Series Pillow Block Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with locking set screw for secure shaft attachment, easy installation, and long service life. The insert bearing is made of stainless steel and the housing is constructed from durable plastic, offering excellent corrosion resistance and lightweight strength for demanding applications.

Part Number SPUCP204-12-R3
Bore ID 0.75 in | 19.05 mm
Length 5 in | 127 mm
Width 1.457 in | 37 mm
Height (Thickness) 2.52 in | 64 mm
Bolt to Bolt 3.78 in | 96 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
