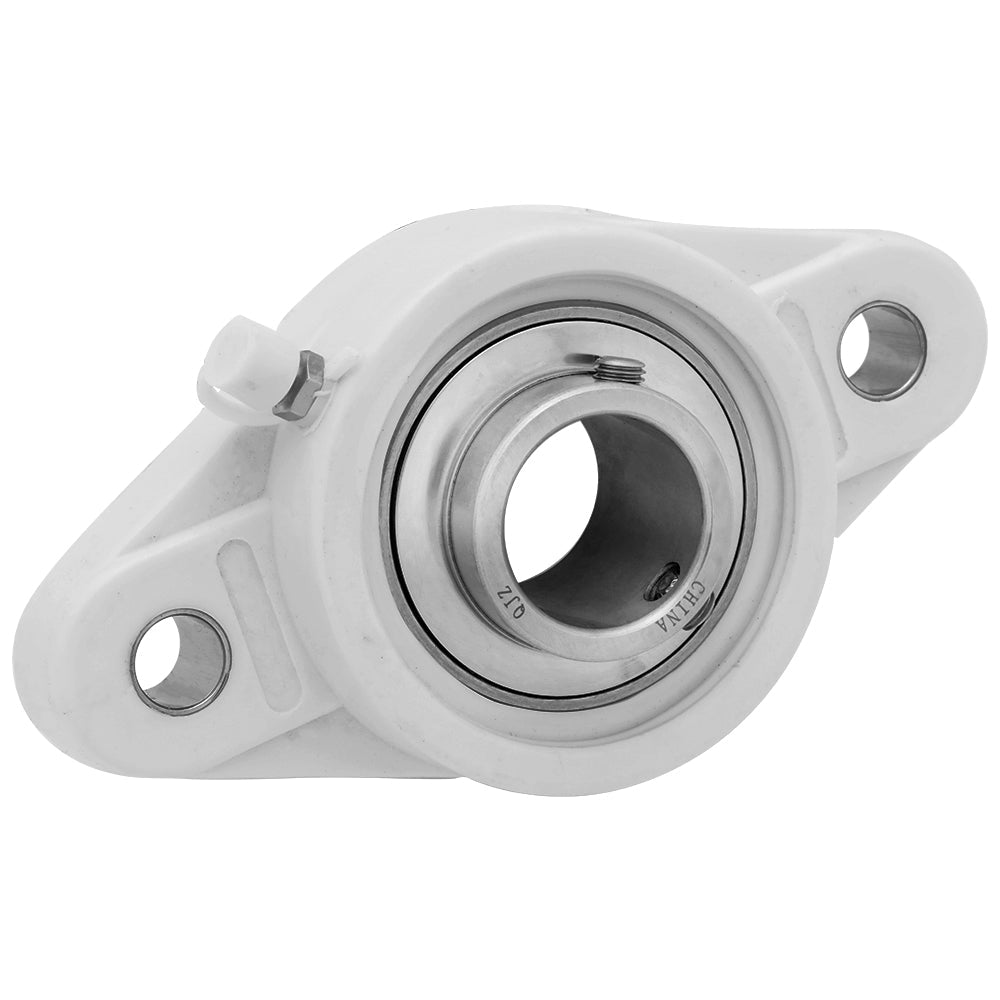

SPUCFL213-40, Plastic 2-Bolt Flanged Mounted Unit Bearing, 2.953 in Bore (ID), Insert Bearing: SUC213-40, Housing: FL213 (P)

Out of stock
SKU: SPUCFL213-40
Material and bore size can be selected below. Dimensions (Bolt to Bolt x Length × Width × Height) remain the same for all options.
$170.50
Product details
  • Part Number SPUCFL213-40
  • Housing FL213 (P)
  • Insert Bearing SUC213-40
  • Bore (ID) 2.5 in | 63.5 mm
  • Bolt to Bolt 8.268 in | 210 mm
  • Length 10.157 in | 258 mm
  • Width 6.102 in | 155 mm
  • Height 2.748 in | 69.7 mm
Description

2-Bolt Flange Mounted Unit Bearing

The UC Series 2-Bolt Flange Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with locking set screw for secure shaft attachment, easy installation, and long service life. The insert bearing is made of stainless steel and the housing is constructed from durable plastic, offering excellent corrosion resistance and lightweight strength for demanding applications.

Part Number SPUCFL213-40
Bore ID 2.5 in | 63.5 mm
Length 258 mm | 10.157 in
Width 155 mm | 6.102 in
Height (ThickNess) 69.7 mm | 2.748 in
Bolt to Bolt 210 mm | 8.268 in


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
