QJZ

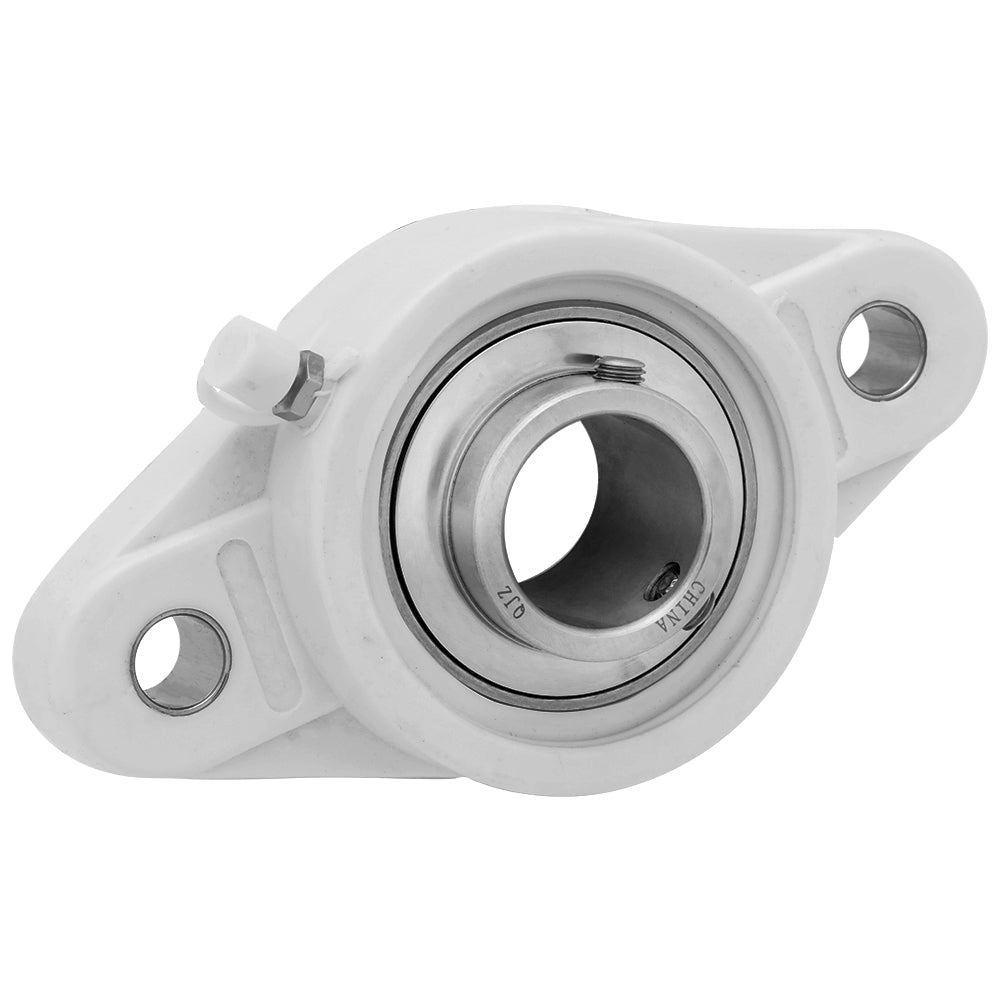

SPUCFL211-32, Plastic 2-Bolt Flanged Mounted Unit Bearing, 2.362 in Bore (ID), Insert Bearing: SUC211-32, Housing: FL211 (P)

Out of stock
SKU: SPUCFL211-32
Material and bore size can be selected below. Dimensions (Bolt to Bolt x Length × Width × Height) remain the same for all options.
$106.75
Product details
  • Part Number SPUCFL211-32
  • Housing FL211 (P)
  • Insert Bearing SUC211-32
  • Bore (ID) 2 in | 50.8 mm
  • Bolt to Bolt 7.244 in | 184 mm
  • Length 8.819 in | 224 mm
  • Width 5.118 in | 130 mm
  • Height 2.3 in | 58.4 mm
Description

2-Bolt Flange Mounted Unit Bearing

The UC Series 2-Bolt Flange Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with locking set screw for secure shaft attachment, easy installation, and long service life. The insert bearing is made of stainless steel and the housing is constructed from durable plastic, offering excellent corrosion resistance and lightweight strength for demanding applications.

Part Number SPUCFL211-32
Bore ID 2 in | 50.8 mm
Length 224 mm | 8.819 in
Width 130 mm | 5.118 in
Height (ThickNess) 58.4 mm | 2.3 in
Bolt to Bolt 184 mm | 7.244 in


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
