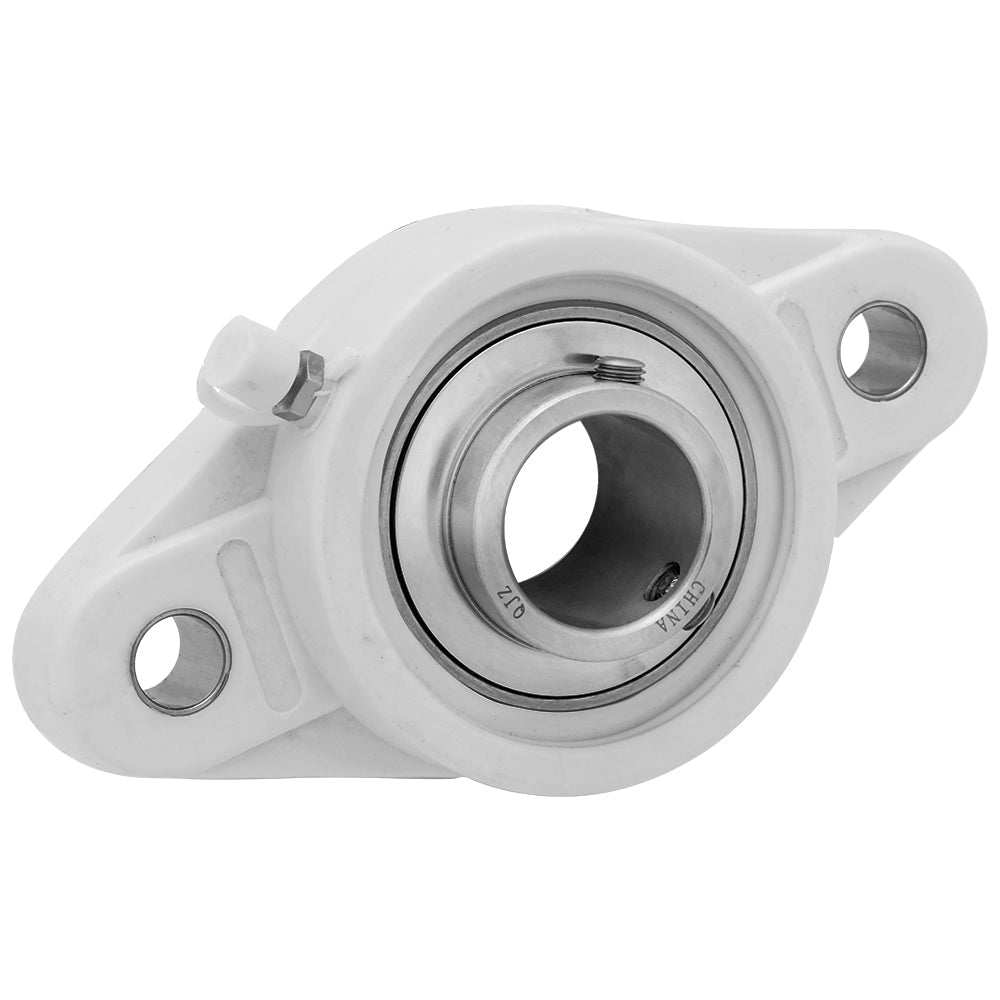

SPUCFL210-30, Plastic 2-Bolt Flanged Mounted Unit Bearing, 2.165 in Bore (ID), Insert Bearing: SUC210-30, Housing: FL210 (P)

Out of stock
SKU: SPUCFL210-30
Material and bore size can be selected below. Dimensions (Bolt to Bolt x Length × Width × Height) remain the same for all options.
$75.25
Product details
  • Part Number SPUCFL210-30
  • Housing FL210 (P)
  • Insert Bearing SUC210-30
  • Bore (ID) 1.875 in | 47.625 mm
  • Bolt to Bolt 6.181 in | 157 mm
  • Length 7.756 in | 197 mm
  • Width 4.528 in | 115 mm
  • Height 2.15 in | 54.6 mm
Description

2-Bolt Flange Mounted Unit Bearing

The UC Series 2-Bolt Flange Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with locking set screw for secure shaft attachment, easy installation, and long service life. The insert bearing is made of stainless steel and the housing is constructed from durable plastic, offering excellent corrosion resistance and lightweight strength for demanding applications.

Part Number SPUCFL210-30
Bore ID 1.875 in | 47.625 mm
Length 197 mm | 7.756 in
Width 115 mm | 4.528 in
Height (ThickNess) 54.6 mm | 2.15 in
Bolt to Bolt 157 mm | 6.181 in


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
