QJZ

SPUCFL209-28, Plastic 2-Bolt Flanged Mounted Unit Bearing, 2 in Bore (ID), Insert Bearing: SUC209-28, Housing: FL209 (P)

Out of stock
SKU: SPUCFL209-28
Material and bore size can be selected below. Dimensions (Bolt to Bolt x Length × Width × Height) remain the same for all options.
$74.75
Product details
  • Part Number SPUCFL209-28
  • Housing FL209 (P)
  • Insert Bearing SUC209-28
  • Bore (ID) 1.75 in | 44.45 mm
  • Bolt to Bolt 5.827 in | 148 mm
  • Length 7.402 in | 188 mm
  • Width 4.252 in | 108 mm
  • Height 2.055 in | 52.2 mm
Description

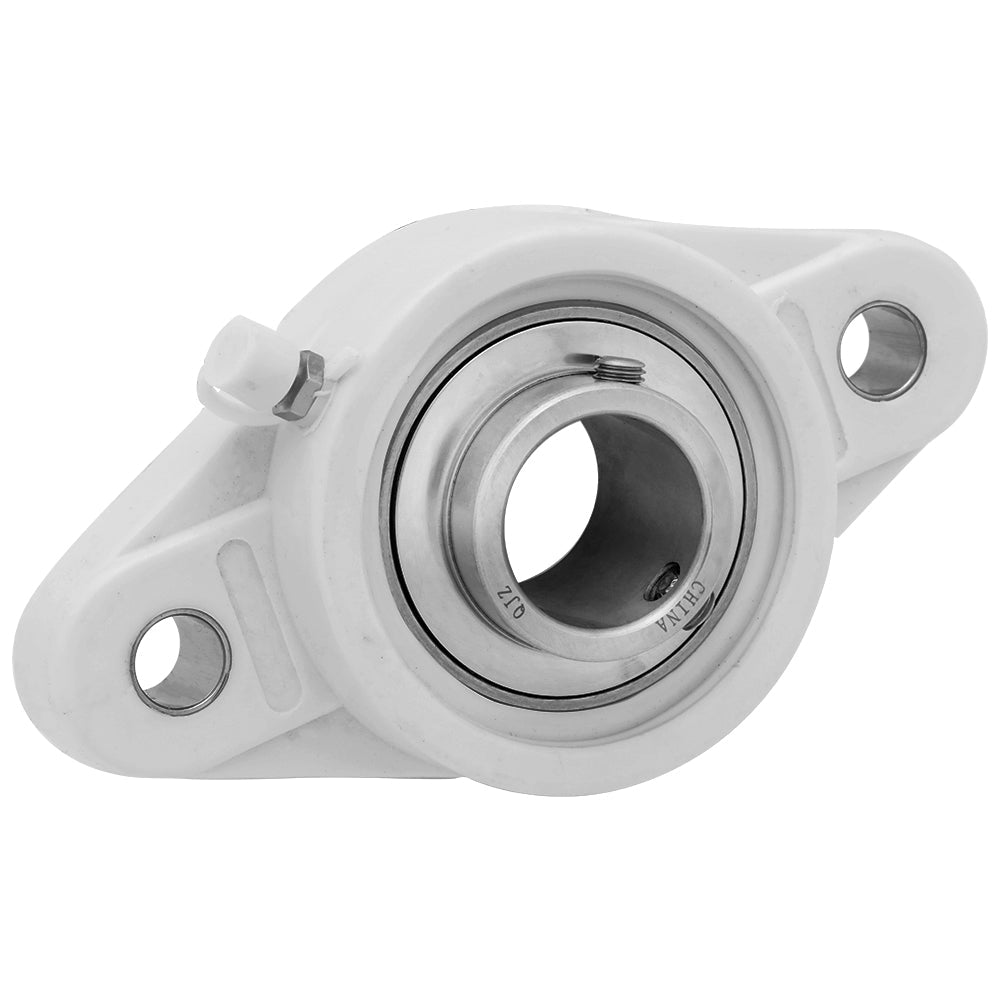

2-Bolt Flange Mounted Unit Bearing

The UC Series 2-Bolt Flange Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with locking set screw for secure shaft attachment, easy installation, and long service life. The insert bearing is made of stainless steel and the housing is constructed from durable plastic, offering excellent corrosion resistance and lightweight strength for demanding applications.

Part Number SPUCFL209-28
Bore ID 1.75 in | 44.45 mm
Length 188 mm | 7.402 in
Width 108 mm | 4.252 in
Height (ThickNess) 52.2 mm | 2.055 in
Bolt to Bolt 148 mm | 5.827 in


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
