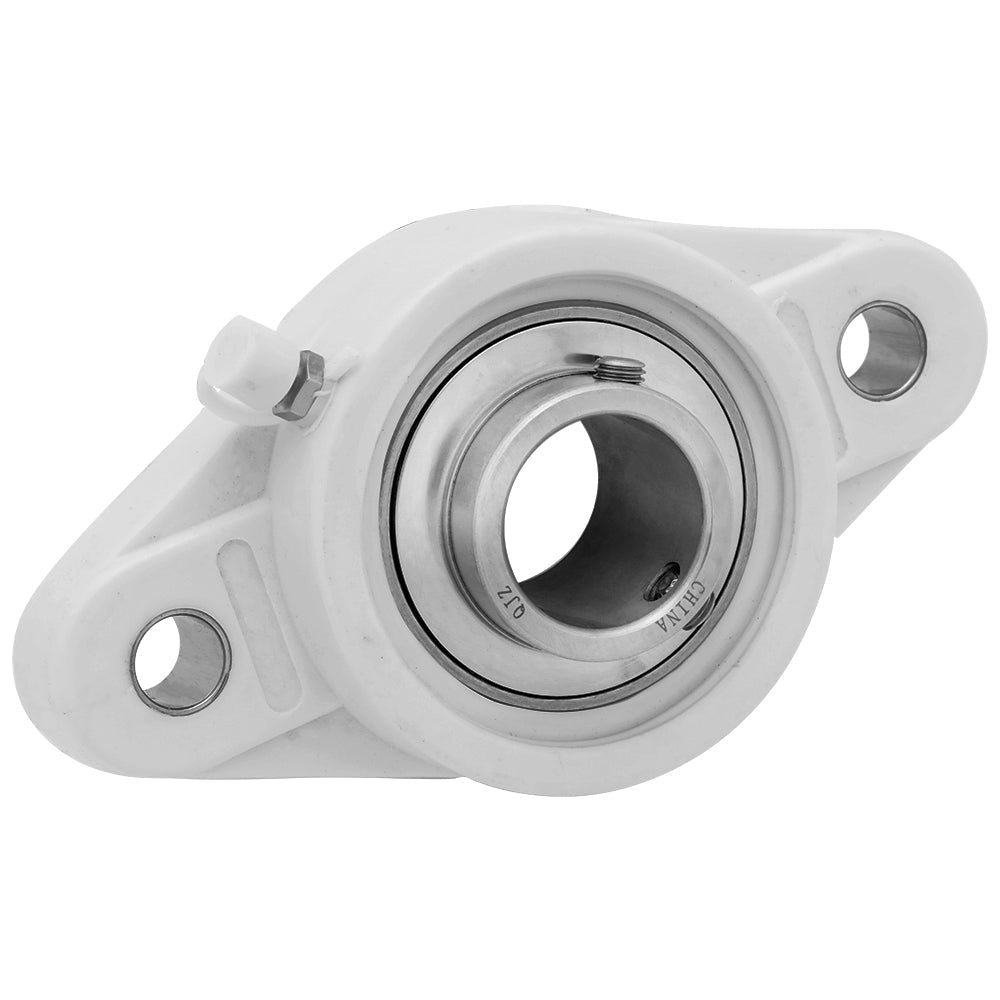

SPUCFL208-24, Plastic 2-Bolt Flanged Mounted Unit Bearing, 1.688 in Bore (ID), Insert Bearing: SUC208-24, Housing: FL208 (P)

Out of stock
SKU: SPUCFL208-24
Material and bore size can be selected below. Dimensions (Bolt to Bolt x Length × Width × Height) remain the same for all options.
$67.75
Product details
  • Part Number SPUCFL208-24
  • Housing FL208 (P)
  • Insert Bearing SUC208-24
  • Bore (ID) 1.5 in | 38.1 mm
  • Bolt to Bolt 5.669 in | 144 mm
  • Length 6.89 in | 175 mm
  • Width 3.937 in | 100 mm
  • Height 2.016 in | 51.2 mm
Description

2-Bolt Flange Mounted Unit Bearing

The UC Series 2-Bolt Flange Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with locking set screw for secure shaft attachment, easy installation, and long service life. The insert bearing is made of stainless steel and the housing is constructed from durable plastic, offering excellent corrosion resistance and lightweight strength for demanding applications.

Part Number SPUCFL208-24
Bore ID 1.5 in | 38.1 mm
Length 175 mm | 6.89 in
Width 100 mm | 3.937 in
Height (ThickNess) 51.2 mm | 2.016 in
Bolt to Bolt 144 mm | 5.669 in


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
