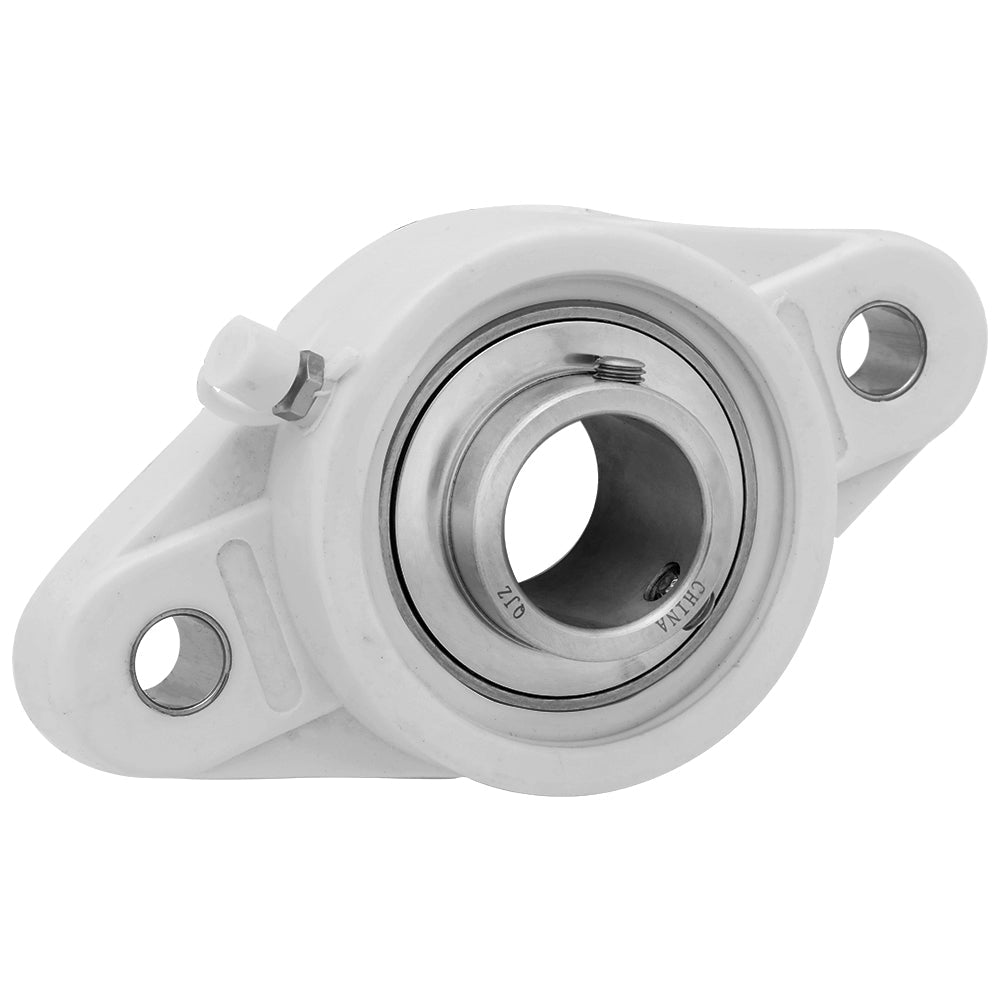

SPUCFL207-20, Plastic 2-Bolt Flanged Mounted Unit Bearing, 1.375 in Bore (ID), Insert Bearing: SUC207-20, Housing: FL207 (P)

Out of stock
SKU: SPUCFL207-20
Material and bore size can be selected below. Dimensions (Bolt to Bolt x Length × Width × Height) remain the same for all options.
$48.50
Product details
  • Part Number SPUCFL207-20
  • Housing FL207 (P)
  • Insert Bearing SUC207-20
  • Bore (ID) 1.25 in | 31.75 mm
  • Bolt to Bolt 5.118 in | 130 mm
  • Length 6.339 in | 161 mm
  • Width 3.543 in | 90 mm
  • Height 1.748 in | 44.4 mm
Description

2-Bolt Flange Mounted Unit Bearing

The UC Series 2-Bolt Flange Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with locking set screw for secure shaft attachment, easy installation, and long service life. The insert bearing is made of stainless steel and the housing is constructed from durable plastic, offering excellent corrosion resistance and lightweight strength for demanding applications.

Part Number SPUCFL207-20
Bore ID 1.25 in | 31.75 mm
Length 161 mm | 634 in
Width 90 mm | 3.543 in
Height (ThickNess) 44.4 mm | 1.748 in
Bolt to Bolt 130 mm | 5.118 in


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
