QJZ

SPUCFL206-18, Plastic 2-Bolt Flanged Mounted Unit Bearing, 1.188 in Bore (ID), Insert Bearing: SUC206-18, Housing: FL206 (P)

Out of stock
SKU: SPUCFL206-18
Material and bore size can be selected below. Dimensions (Bolt to Bolt x Length × Width × Height) remain the same for all options.
$45.50
Product details
  • Part Number SPUCFL206-18
  • Housing FL206 (P)
  • Insert Bearing SUC206-18
  • Bore (ID) 1.125 in | 28.575 mm
  • Bolt to Bolt 4.606 in | 117 mm
  • Length 5.827 in | 148 mm
  • Width 3.15 in | 80 mm
  • Height 1.583 in | 40.2 mm
Description

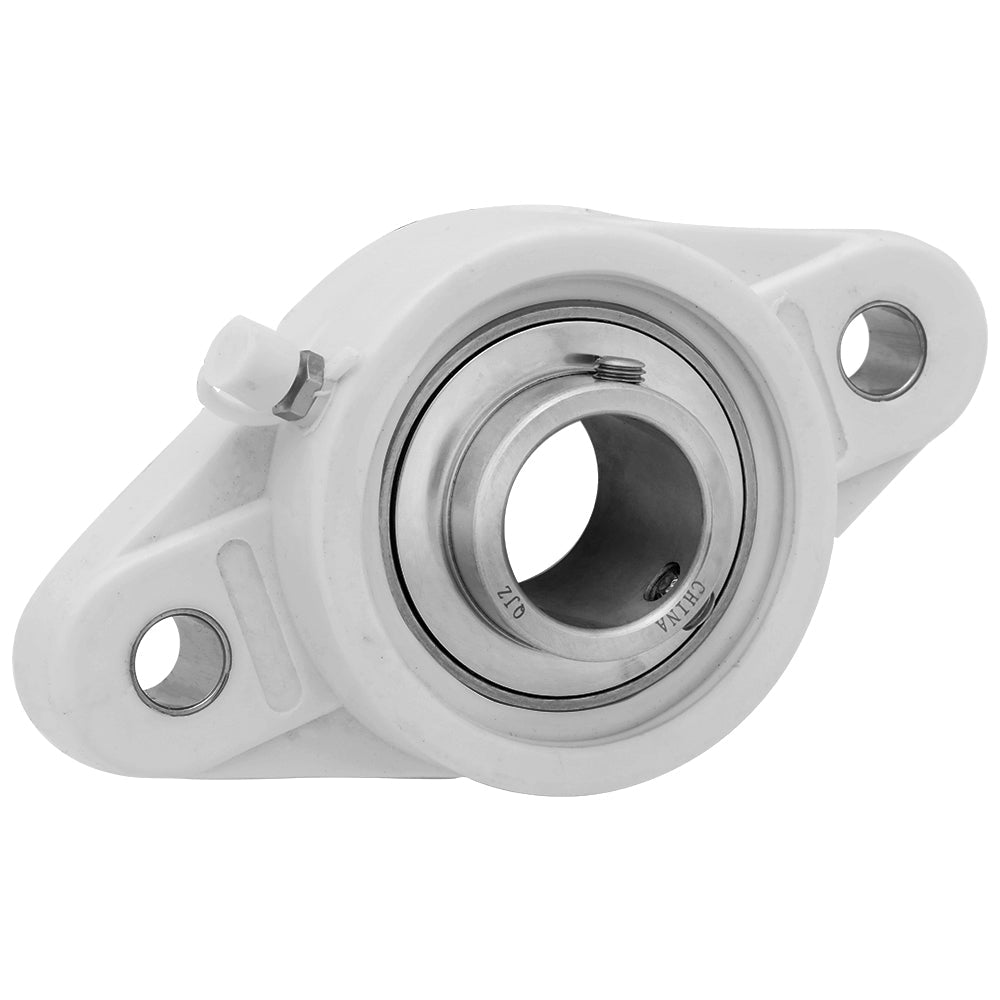

2-Bolt Flange Mounted Unit Bearing

The UC Series 2-Bolt Flange Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with locking set screw for secure shaft attachment, easy installation, and long service life. The insert bearing is made of stainless steel and the housing is constructed from durable plastic, offering excellent corrosion resistance and lightweight strength for demanding applications.

Part Number SPUCFL206-18
Bore ID 1.125 in | 28.575 mm
Length 148 mm | 5.827 in
Width 80 mm | 3.15 in
Height (ThickNess) 40.2 mm | 1.583 in
Bolt to Bolt 117 mm | 4.606 in


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
