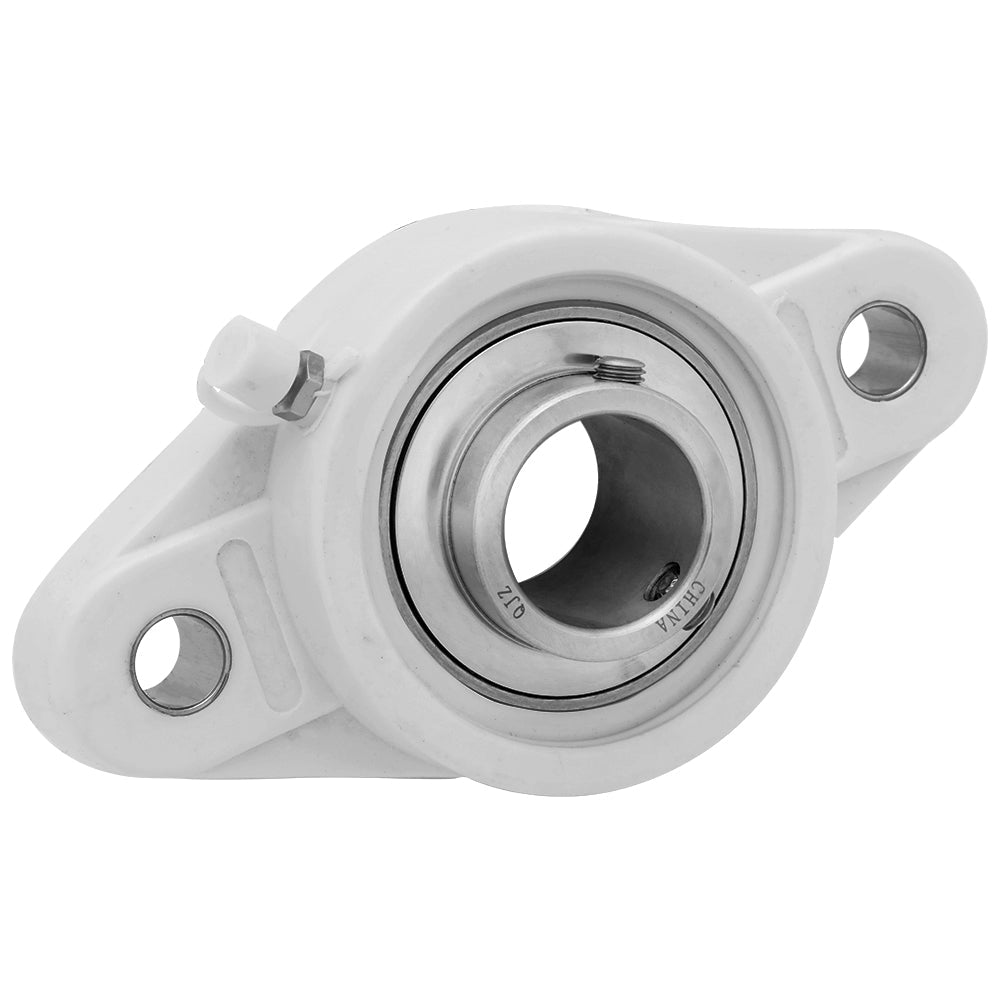

SPUCFL205-15, Plastic 2-Bolt Flanged Mounted Unit Bearing, 1.125 in Bore (ID), Insert Bearing: SUC205-15, Housing: FL205 (P)

Out of stock
SKU: SPUCFL205-15
Material and bore size can be selected below. Dimensions (Bolt to Bolt x Length × Width × Height) remain the same for all options.
$29.99
Product details
  • Part Number SPUCFL205-15
  • Housing FL205 (P)
  • Insert Bearing SUC205-15
  • Bore (ID) 0.938 in | 23.813 mm
  • Bolt to Bolt 3.898 in | 99 mm
  • Length 5.118 in | 130 mm
  • Width 2.677 in | 68 mm
  • Height 1.409 in | 35.8 mm
Description

2-Bolt Flange Mounted Unit Bearing

The UC Series 2-Bolt Flange Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with locking set screw for secure shaft attachment, easy installation, and long service life. The insert bearing is made of stainless steel and the housing is constructed from durable plastic, offering excellent corrosion resistance and lightweight strength for demanding applications.

Part Number SPUCFL205-15
Bore ID 0.938 in | 23.813 mm
Length 130 mm | 5.118 in
Width 68 mm | 2.677 in
Height (ThickNess) 35.8 mm | 1.409 in
Bolt to Bolt 99 mm | 3.898 in


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
