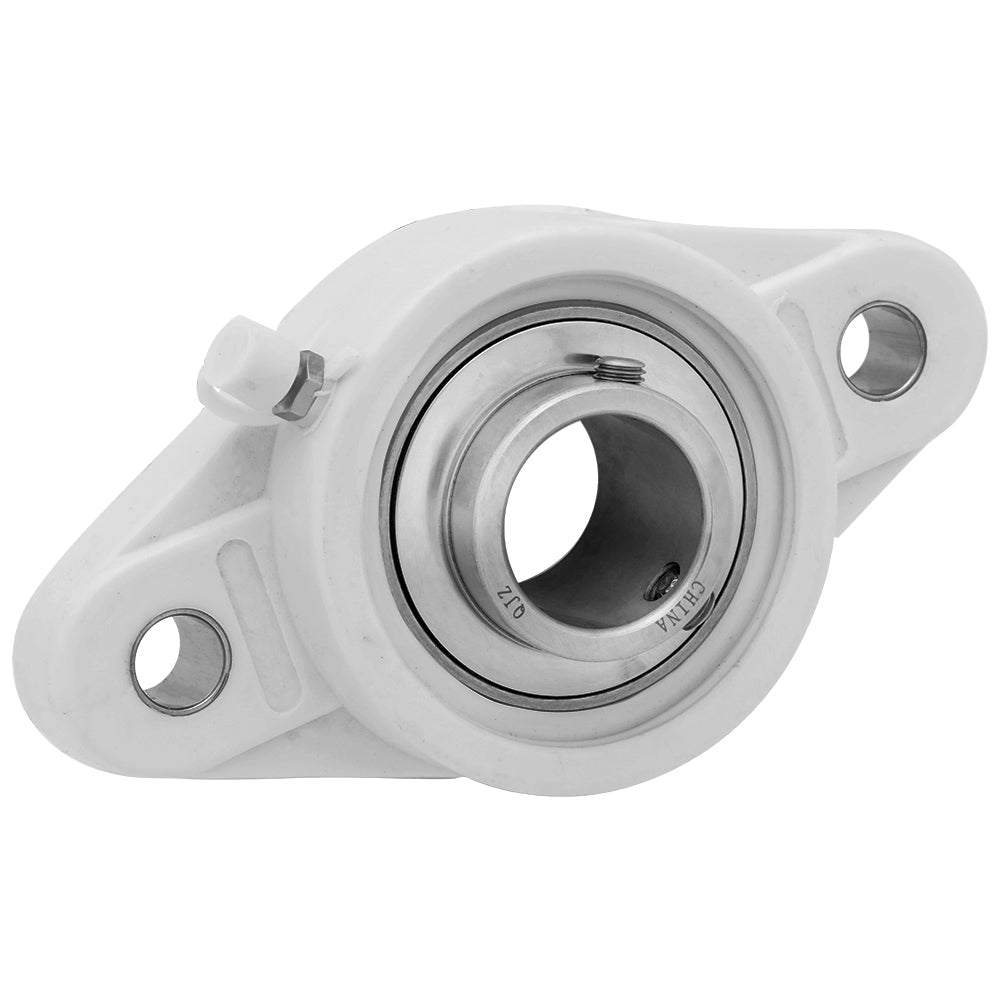

SPUCFL204-12, Plastic 2-Bolt Flanged Mounted Unit Bearing, 0.787 in Bore (ID), Insert Bearing: SUC204-12, Housing: FL204 (P)

In stock
SKU: SPUCFL204-12
Material and bore size can be selected below. Dimensions (Bolt to Bolt x Length × Width × Height) remain the same for all options.
$31.75
Product details
  • Part Number SPUCFL204-12
  • Housing FL204 (P)
  • Insert Bearing SUC204-12
  • Bore (ID) 0.75 in | 19.5 mm
  • Bolt to Bolt 3.543 in | 90 mm
  • Length 4.449 in | 113 mm
  • Width 2.362 in | 60 mm
  • Height 1.311 in | 33.3 mm
Description

2-Bolt Flange Mounted Unit Bearing

The UC Series 2-Bolt Flange Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with locking set screw for secure shaft attachment, easy installation, and long service life. The insert bearing is made of stainless steel and the housing is constructed from durable plastic, offering excellent corrosion resistance and lightweight strength for demanding applications.

Part Number SPUCFL204-12
Bore ID 0.75 in | 19.05 mm
Length 113 mm | 4.449 in
Width 60 mm | 2.362 in
Height (ThickNess) 33.3 mm | 1.311 in
Bolt to Bolt 90 mm | 3.543 in


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
