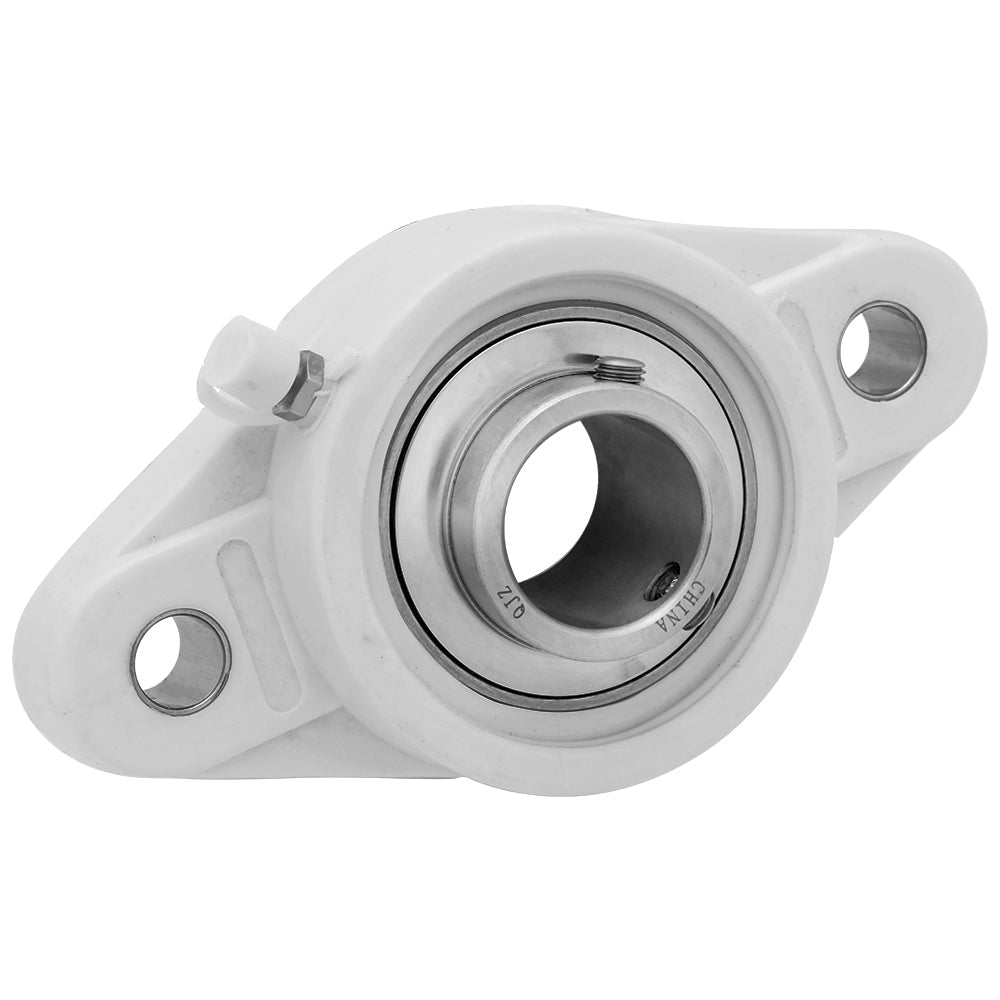

SPUCFL203-11, Plastic 2-Bolt Flanged Mounted Unit Bearing, 0.75 in Bore (ID), Insert Bearing: SUC203-11, Housing: FL202 (P)

In stock
SKU: SPUCFL203-11
Material and bore size can be selected below. Dimensions (Bolt to Bolt x Length × Width × Height) remain the same for all options.
$21.50
Product details
  • Part Number SPUCFL203-11
  • Housing FL202 (P)
  • Insert Bearing SUC203-11
  • Bore (ID) 0.688 in | 17.463 mm
  • Bolt to Bolt 3.012 in | 76.5 mm
  • Length 3.898 in | 99 mm
  • Width 2.244 in | 57 mm
  • Height 1.22 in | 31 mm
Description

2-Bolt Flange Mounted Unit Bearing

The UC Series 2-Bolt Flange Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with locking set screw for secure shaft attachment, easy installation, and long service life. The insert bearing is made of stainless steel and the housing is constructed from durable plastic, offering excellent corrosion resistance and lightweight strength for demanding applications.

Part Number SPUCFL203-11
Bore ID 0.688 in | 17.463 mm
Length 99 mm | 3.898 in
Width 57 mm | 2.244 in
Height (ThickNess) 31 mm | 1.22 in
Bolt to Bolt 76.5 mm | 3.012 in


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
