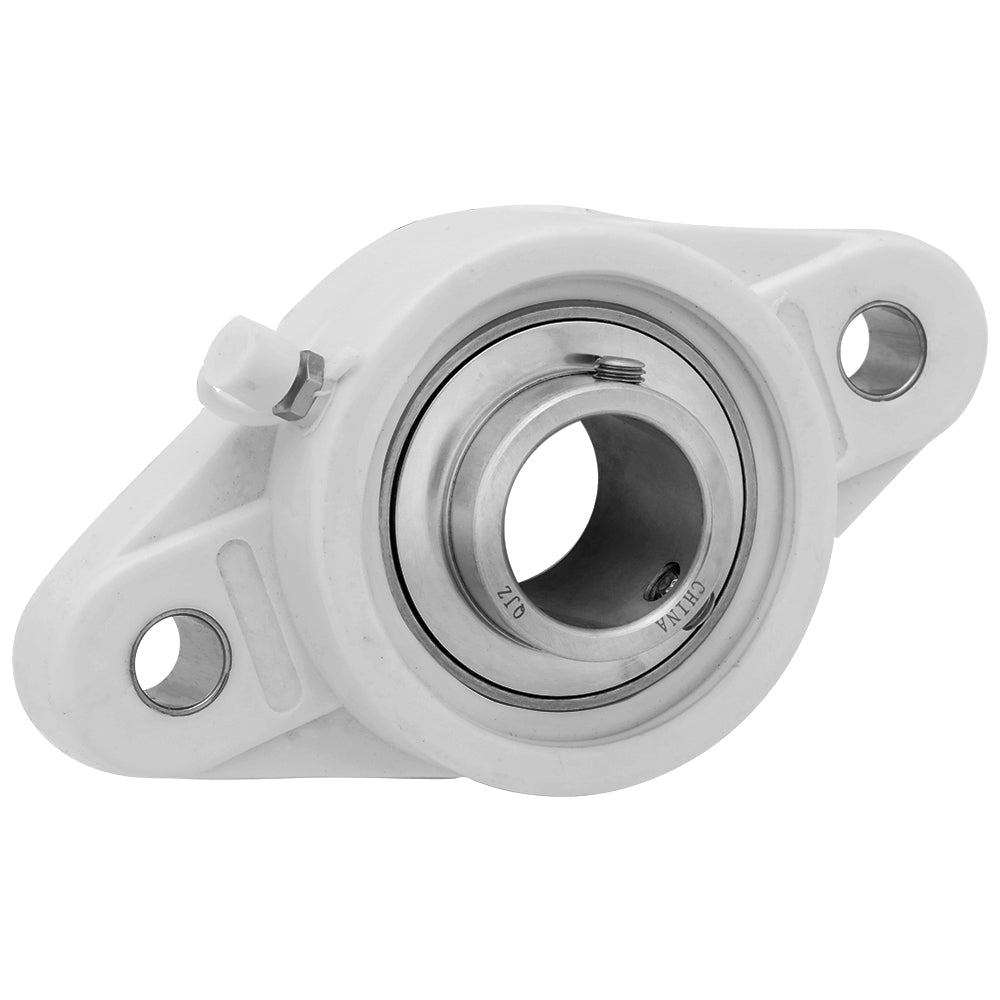

SPUCFL201, Plastic 2-Bolt Flanged Mounted Unit Bearing, 0.591 in Bore (ID), Insert Bearing: SUC201, Housing: FL201 (P)

In stock
SKU: SPUCFL201
Material and bore size can be selected below. Dimensions (Bolt to Bolt x Length × Width × Height) remain the same for all options.
$25.50
Product details
  • Part Number SPUCFL201
  • Housing FL201 (P)
  • Insert Bearing SUC201
  • Bore (ID) 0.472 in | 12 mm
  • Bolt to Bolt 3.012 in | 76.5 mm
  • Length 3.898 in | 99 mm
  • Width 2.244 in | 57 mm
  • Height 1.22 in | 31 mm
Description

2-Bolt Flange Mounted Unit Bearing

The UC Series 2-Bolt Flange Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with locking set screw for secure shaft attachment, easy installation, and long service life. The insert bearing is made of stainless steel and the housing is constructed from durable plastic, offering excellent corrosion resistance and lightweight strength for demanding applications.

Part Number SPUCFL201
Bore ID 0.472 in | 12 mm
Length 99 in | 3.898 mm
Width 2.244 in | 57 mm
Height (ThickNess) 31 in | 1.22 mm
Bolt to Bolt 76.5 in | 3.012 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
