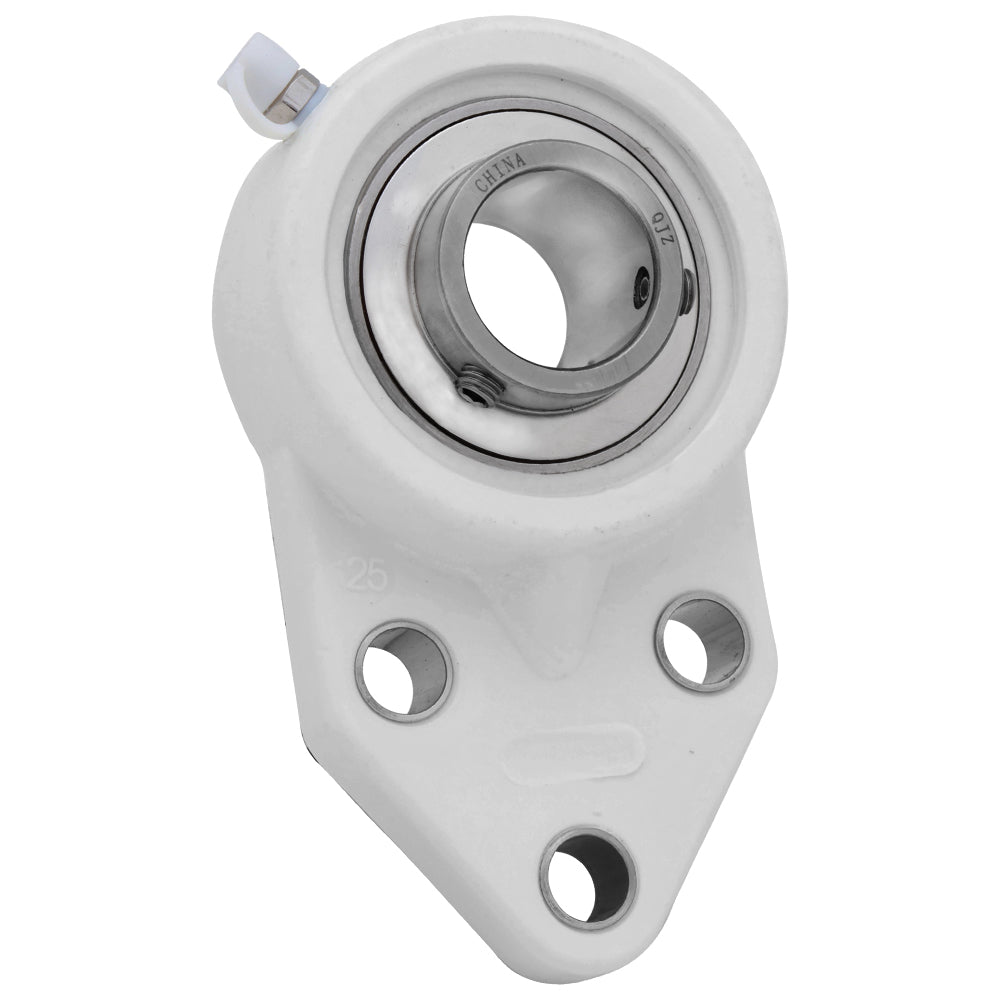

SPUCFB210-31, Plastic 3-Bolt Flange Bracket Mounted Unit Bearing, 1.9375 in Bore (ID), Stainless Steel Insert Bearing: SUC210-31, Housing: FB210 (P)

Out of stock
SKU: SPUCFB210-31
All of our mounted unit bearings are provided fully assembled. Should you require to receive insert bearing and housing separately, please contact us for assistance.
$88.00
Product details
  • Type Mounted Unit Bearings
  • Part Number SPUCFB210-31
  • Insert Bearing SUC210-31
  • Cast Iron Housing FB210 (P)
  • Bore (ID) 1.94 in
  • Length 2.677 in | 68 mm
  • Height 2.15 in | 54.6 mm
  • Width 4.488 in | 114 mm

Please contact us for more information on dimensions.

Description

Plastic 3-Bolt Flange Bracket Mounted Unit Bearing

The UC Series 3-Bolt Flange Bracket Mounted Unit Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with eccentric locking collar for secure shaft attachment, easy installation, and long service life.

Part Number SPUCFB210-31
Bore ID 1.938 in | 49.213 mm
Length 2.677 in | 68 mm
Width 4.488 in | 114 mm
Height (ThickNess) 2.15 in | 54.6 mm
Top Bolt to Top Bolt 2.283 in | 58 mm
Bottom Bolt Hole to Top Bolt Hole 1.811 in | 46 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
