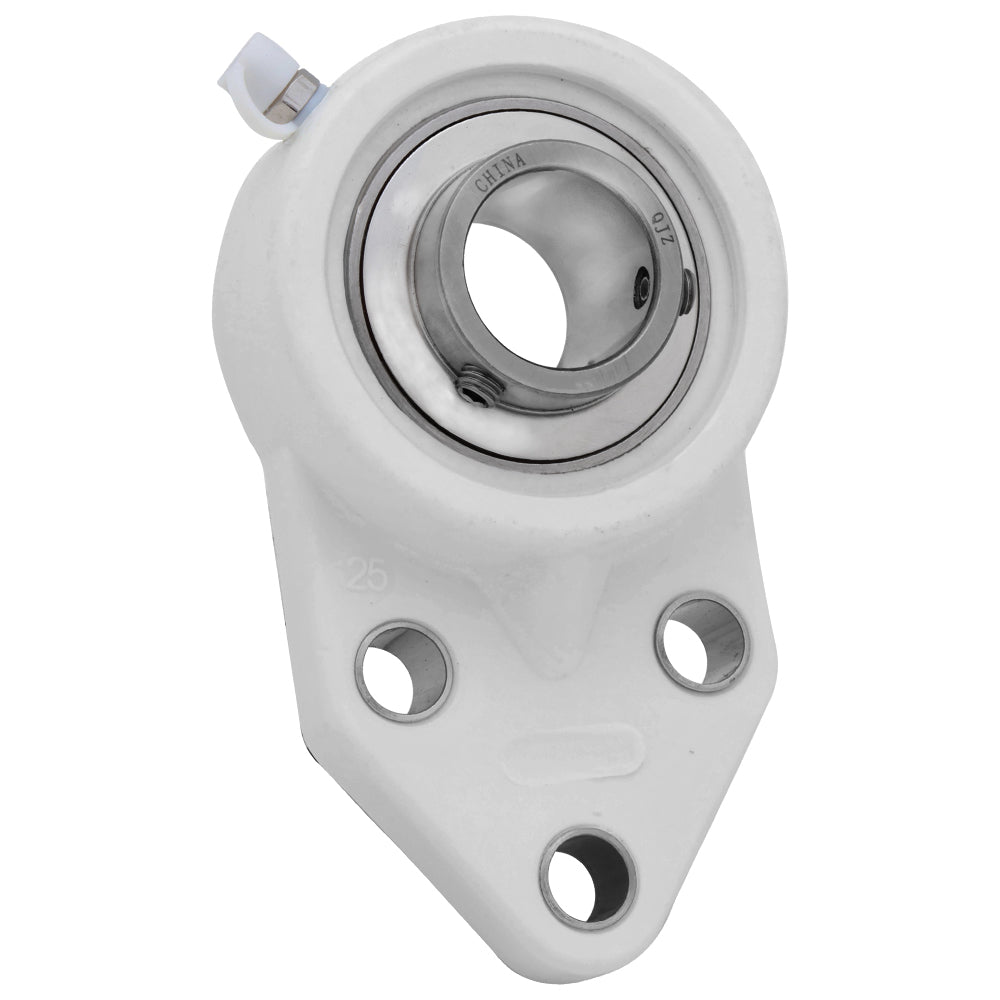

SPUCFB209, Plastic 3-Bolt Flange Bracket Mounted Unit Bearing, 1.772 in Bore (ID), Stainless Steel Insert Bearing: SUC209, Housing: FB209 (P)

Out of stock
SKU: SPUCFB209
All of our mounted unit bearings are provided fully assembled. Should you require to receive insert bearing and housing separately, please contact us for assistance.
$98.25
Product details
  • Type Mounted Unit Bearings
  • Part Number SPUCFB209
  • Insert Bearing SUC209
  • Cast Iron Housing FB209 (P)
  • Bore (ID) 1.77 in
  • Length 2.362 in | 60 mm
  • Height 2.016 in | 51.2 mm
  • Width 3.937 in | 100 mm

Please contact us for more information on dimensions.

Description

Plastic 3-Bolt Flange Bracket Mounted Unit Bearing

The UC Series 3-Bolt Flange Bracket Mounted Unit Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with eccentric locking collar for secure shaft attachment, easy installation, and long service life.

Part Number SPUCFB209
Bore ID 1.772 in | 45 mm
Length 2.362 in | 60 mm
Width 3.937 in | 100 mm
Height (ThickNess) 2.016 in | 51.2 mm
Top Bolt to Top Bolt 1.969 in | 50 mm
Bottom Bolt Hole to Top Bolt Hole 1.693 in | 43 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
