SPUCFB208-25, Plastic 3-Bolt Flange Bracket Mounted Unit Bearing, 1.5625 in Bore (ID), Stainless Steel Insert Bearing: SUC208-25, Housing: FB209 (P)

Out of stock
SKU: SPUCFB208-25
All of our mounted unit bearings are provided fully assembled. Should you require to receive insert bearing and housing separately, please contact us for assistance.
$98.25
Product details
  • Type Mounted Unit Bearings
  • Part Number SPUCFB208-25
  • Insert Bearing SUC208-25
  • Cast Iron Housing FB209 (P)
  • Bore (ID) 1.56 in
  • Length 2.362 in | 60 mm
  • Height 2.016 in | 51.2 mm
  • Width 3.937 in | 100 mm

Please contact us for more information on dimensions.

Description

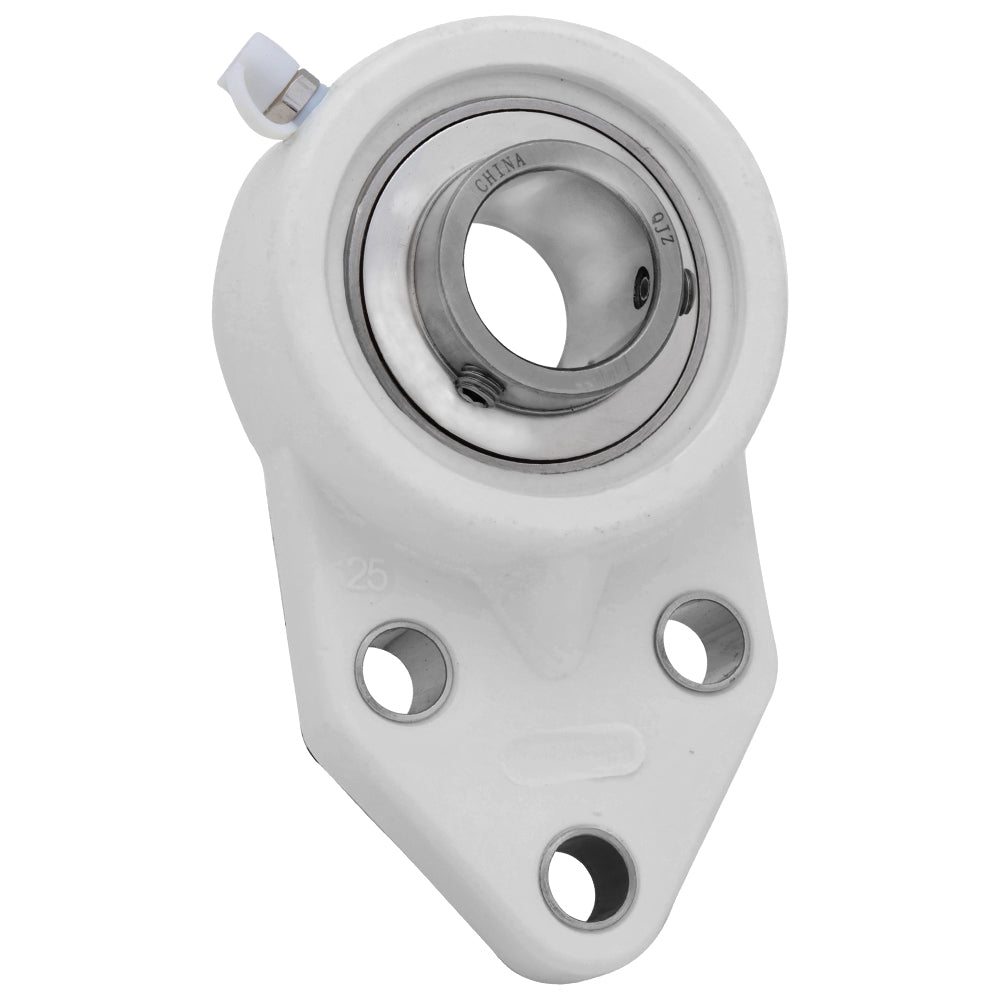

Plastic 3-Bolt Flange Bracket Mounted Unit Bearing

The UC Series 3-Bolt Flange Bracket Mounted Unit Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with eccentric locking collar for secure shaft attachment, easy installation, and long service life.

Part Number SPUCFB208-25
Bore ID 1.563 in | 39.688 mm
Length 2.362 in | 60 mm
Width 3.937 in | 100 mm
Height (ThickNess) 2.016 in | 51.2 mm
Top Bolt to Top Bolt 1.969 in | 50 mm
Bottom Bolt Hole to Top Bolt Hole 1.693 in | 43 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
