SPUCFB207-21, Plastic 3-Bolt Flange Bracket Mounted Unit Bearing, 1.3125 in Bore (ID), Stainless Steel Insert Bearing: SUC207-21, Housing: FB207 (P)

Out of stock
SKU: SPUCFB207-21
All of our mounted unit bearings are provided fully assembled. Should you require to receive insert bearing and housing separately, please contact us for assistance.
$42.75
Product details
  • Type Mounted Unit Bearings
  • Part Number SPUCFB207-21
  • Insert Bearing SUC207-21
  • Cast Iron Housing FB207 (P)
  • Bore (ID) 1.31 in
  • Length 2.165 in | 55 mm
  • Height 1.748 in | 44.4 mm
  • Width 3.543 in | 90 mm

Please contact us for more information on dimensions.

Description

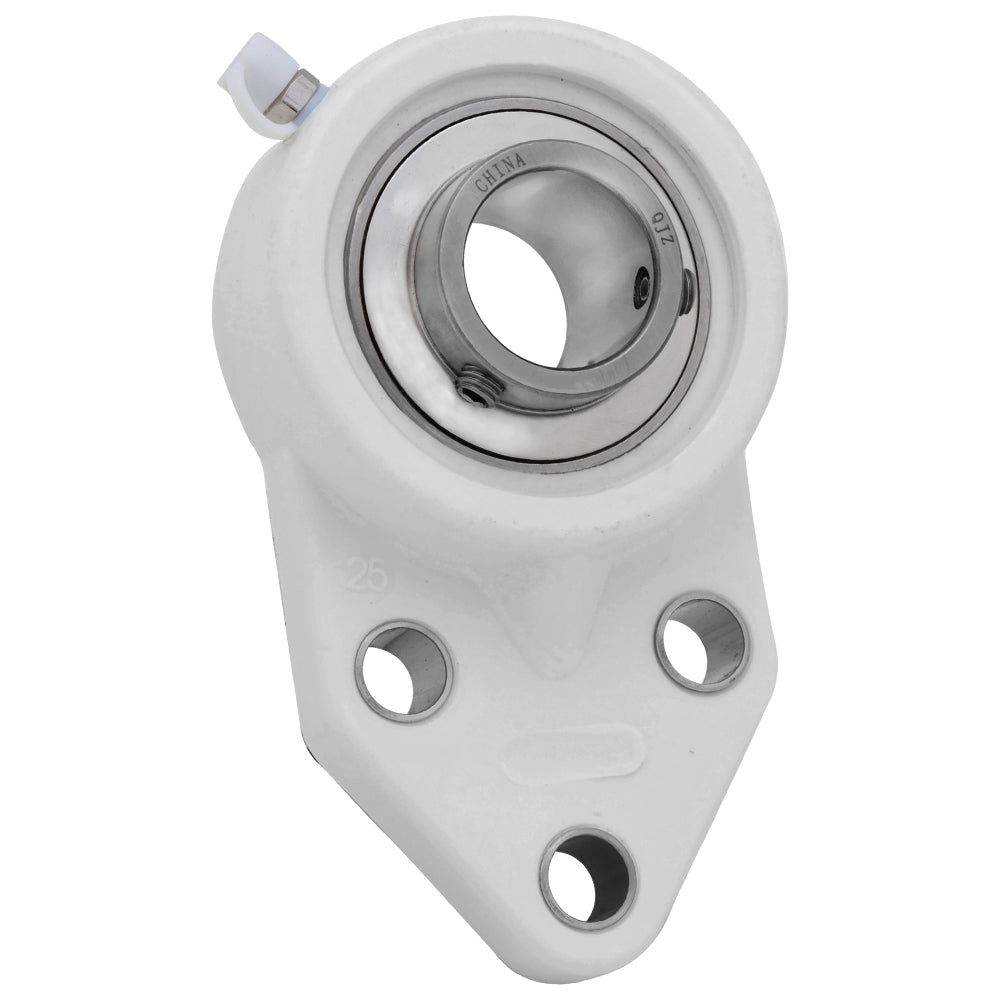

Plastic 3-Bolt Flange Bracket Mounted Unit Bearing

The UC Series 3-Bolt Flange Bracket Mounted Unit Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with eccentric locking collar for secure shaft attachment, easy installation, and long service life.

Part Number SPUCFB207-21
Bore ID 1.313 in | 33.338 mm
Length 2.165 in | 55 mm
Width 3.543 in | 90 mm
Height (ThickNess) 1.748 in | 44.4 mm
Top Bolt to Top Bolt 1.811 in | 46 mm
Bottom Bolt Hole to Top Bolt Hole 1.26 in | 32 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
