QJZ

SPUCFB206-20, Plastic 3-Bolt Flange Bracket Mounted Unit Bearing, 1.25 in Bore (ID), Stainless Steel Insert Bearing: SUC206-20, Housing: FB206 (P)

In stock
SKU: SPUCFB206-20
All of our mounted unit bearings are provided fully assembled. Should you require to receive insert bearing and housing separately, please contact us for assistance.
$33.50
Product details
  • Type Mounted Unit Bearings
  • Part Number SPUCFB206-20
  • Insert Bearing SUC206-20
  • Cast Iron Housing FB206 (P)
  • Bore (ID) 1.25 in
  • Length 1.969 in | 50 mm
  • Height 1.583 in | 40.2 mm
  • Width 3.15 in | 80 mm

Please contact us for more information on dimensions.

Description

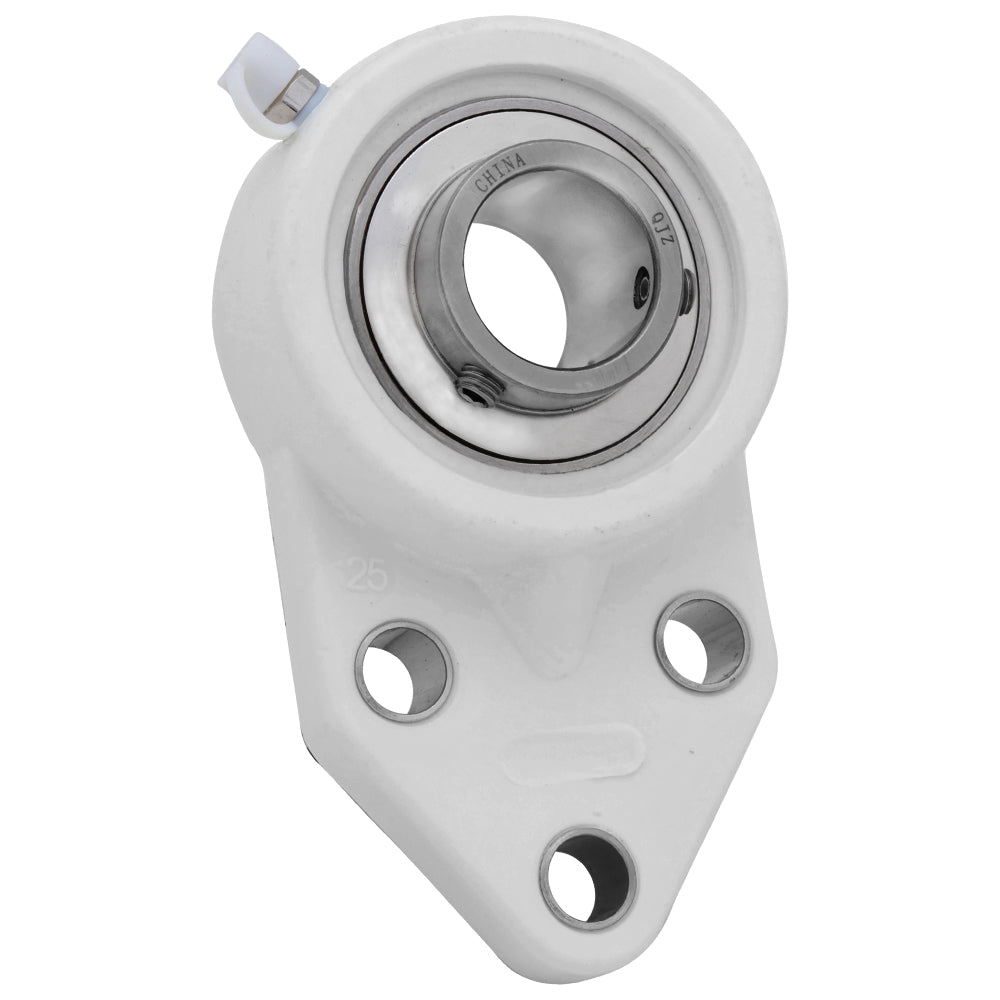

Plastic 3-Bolt Flange Bracket Mounted Unit Bearing

The UC Series 3-Bolt Flange Bracket Mounted Unit Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with eccentric locking collar for secure shaft attachment, easy installation, and long service life.

Part Number SPUCFB206-20
Bore ID 1.25 in | 31.75 mm
Length 1.969 in | 50 mm
Width 3.15 in | 80 mm
Height (ThickNess) 1.583 in | 40.2 mm
Top Bolt to Top Bolt 1.575 in | 40 mm
Bottom Bolt Hole to Top Bolt Hole 1.142 in | 29 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
