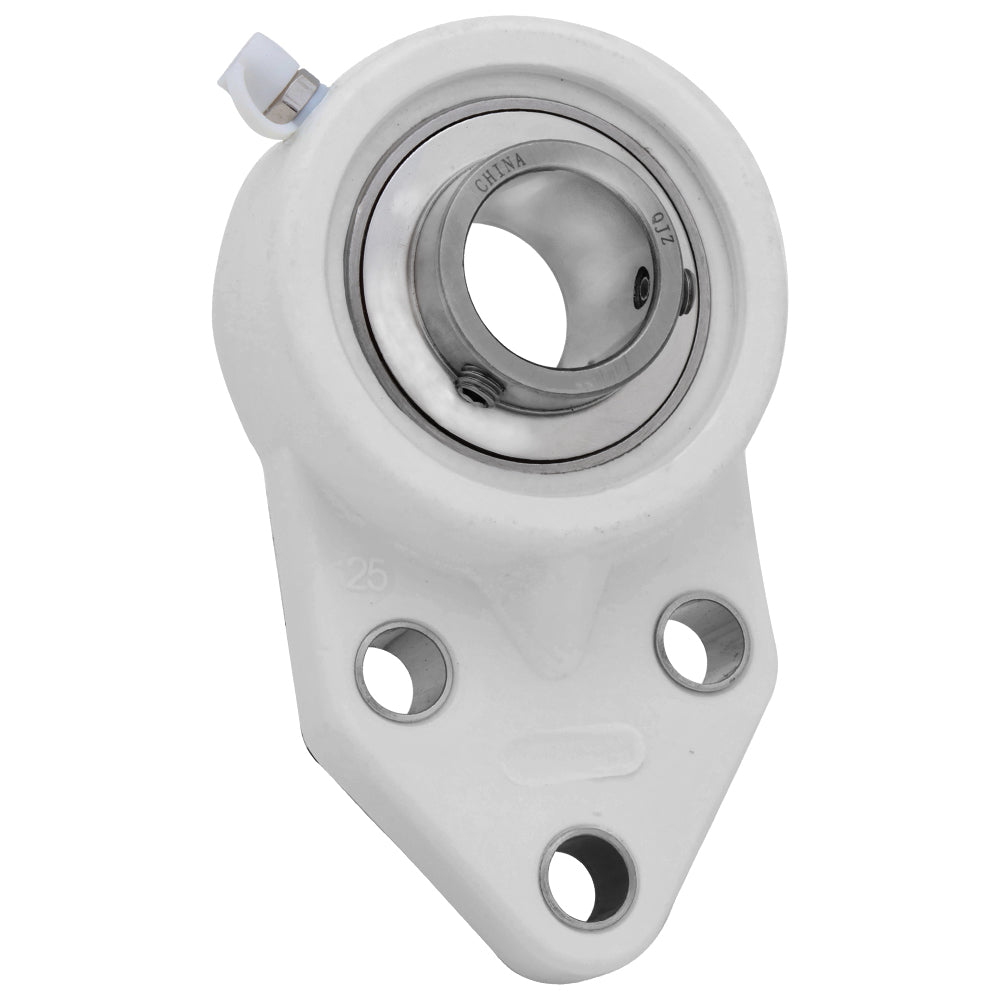

SPUCFB205-16-R3, Plastic 3-Bolt Flange Bracket Mounted Unit Bearing, 1 in Bore (ID), Stainless Steel Insert Bearing: SUC205-16 R3, Housing: FB205 (P)

In stock
SKU: SPUCFB205-16-R3
All of our mounted unit bearings are provided fully assembled. Should you require to receive insert bearing and housing separately, please contact us for assistance.
$36.50
Product details
  • Type Mounted Unit Bearings
  • Part Number SPUCFB205-16-R3
  • Insert Bearing SUC205-16 R3
  • Cast Iron Housing FB205 (P)
  • Bore (ID) 1 in
  • Length 1.772 in | 45 mm
  • Height 1.406 in | 35.7 mm
  • Width 2.677 in | 68 mm

Please contact us for more information on dimensions.

Description

Plastic 3-Bolt Flange Bracket Mounted Unit Bearing

The UC Series 3-Bolt Flange Bracket Mounted Unit Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with eccentric locking collar for secure shaft attachment, easy installation, and long service life.

Part Number SPUCFB205-16-R3
Bore ID 1 in | 25.4 mm
Length 1.772 in | 45 mm
Width 2.677 in | 68 mm
Height (ThickNess) 1.406 in | 35.7 mm
Top Bolt to Top Bolt 1.339 in | 34 mm
Bottom Bolt Hole to Top Bolt Hole 1.063 in | 27 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
