QJZ

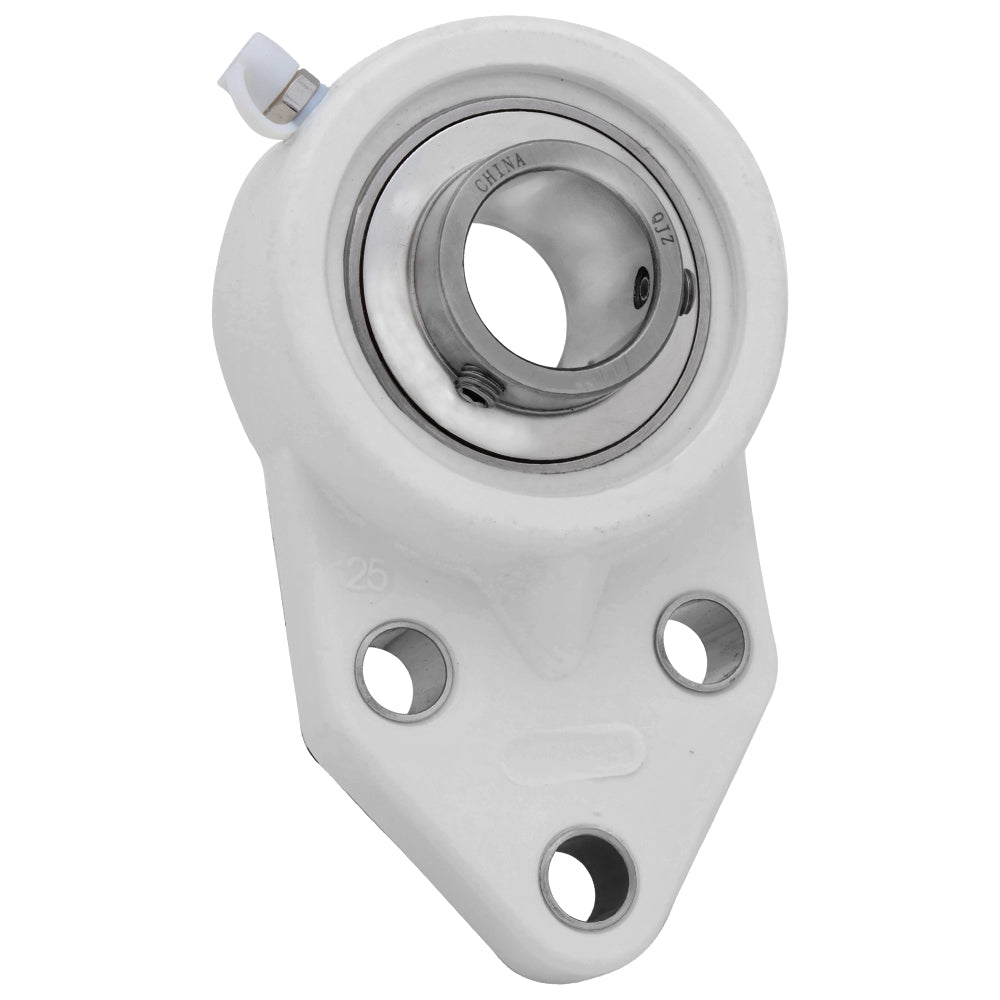

SPUCFB204, Plastic 3-Bolt Flange Bracket Mounted Unit Bearing, 0.787 in Bore (ID), Stainless Steel Insert Bearing: SUC204, Housing: FB204 (P)

In stock
SKU: SPUCFB204
All of our mounted unit bearings are provided fully assembled. Should you require to receive insert bearing and housing separately, please contact us for assistance.
$32.75
Product details
  • Type Mounted Unit Bearings
  • Part Number SPUCFB204
  • Insert Bearing SUC204
  • Cast Iron Housing FB204 (P)
  • Bore (ID) 0.79 in
  • Length 1.654 in | 42 mm
  • Height 1.311 in | 33.3 mm
  • Width 2.362 in | 60 mm

Please contact us for more information on dimensions.

Description

Plastic 3-Bolt Flange Bracket Mounted Unit Bearing

The UC Series 3-Bolt Flange Bracket Mounted Unit Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with eccentric locking collar for secure shaft attachment, easy installation, and long service life.

Part Number SPUCFB204
Bore ID 0.787 in | 20 mm
Length 1.654 in | 42 mm
Width 2.362 in | 60 mm
Height (ThickNess) 1.311 in | 33.3 mm
Top Bolt to Top Bolt 1.457 in | 37 mm
Bottom Bolt Hole to Top Bolt Hole 0.866 in | 22 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
